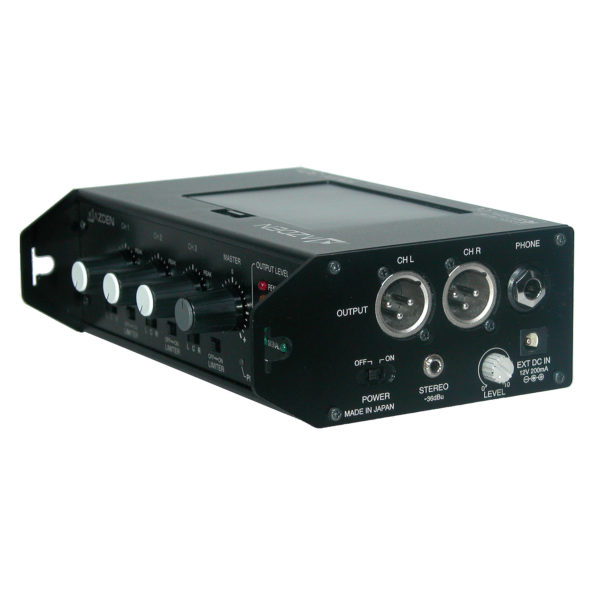

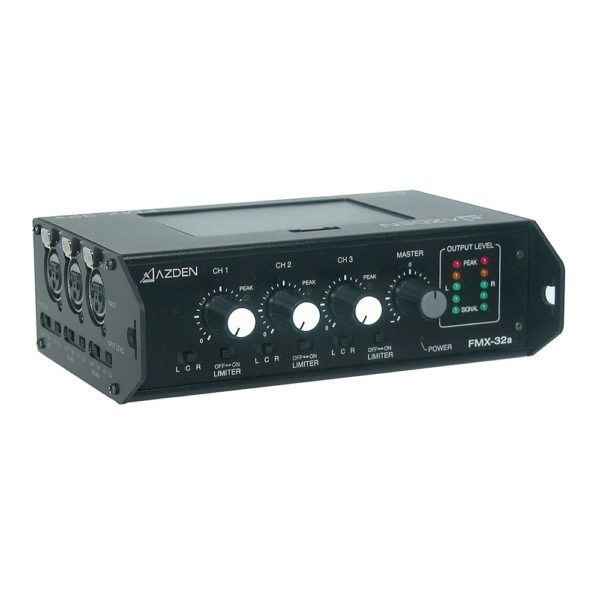

FMX-32a – 3 Channel Portable Mixer

$449.00

Three channel portable audio field mixer with 3 XLR in, 2 XLR out and mini-jack out.

Features

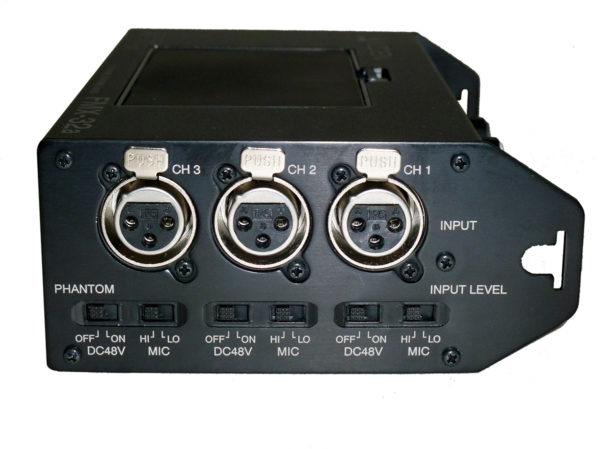

  • 3 balanced XLR mic inputs and pan controls
  • Switchable 48V phantom power and limiting
  • 5-step LED master bus meters

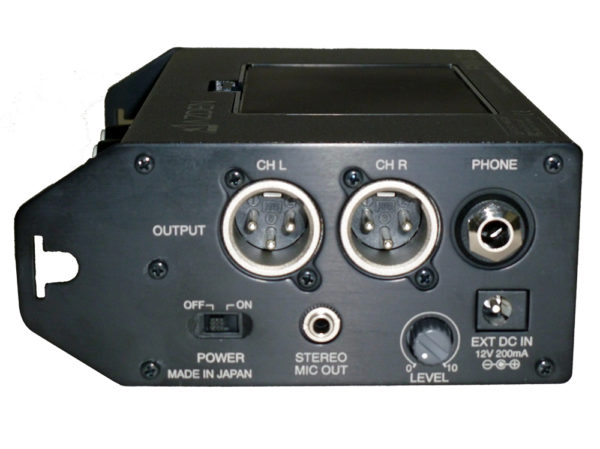

  • 2 balanced XLR outputs
  • Stereo mini-jack output for DSLR cameras
  • Headphone out with level control
  • 6x AA battery powered
  • Optional A/C adapter
  • 2 year warranty

Description

New and improved, the FMX-32a now uses the same circuit topology as the more expensive FMX-42 series mixers. With improved signal to noise ratio and wider frequency response the new FMX-32a is designed for the demanding needs of Professional Videographers. The small, all metal, battery operated (6-“AA”) mixer can be attached directly to the camera with supplied hook-and-loop fastener. The FMX-32a has the following features: 3 XLR microphone inputs, 3 input level controls, master level control, switchable phantom power and limiters for each input, channel panning switches (L-C-R), stereo XLR and mini outputs, 5-step LED array for easy signal monitoring, 12V DC input for external power (optional BC-27 power supply), and a 1/4″ monitor headphone jack with level control.

[one_half]

    • Frequency Response

    • Main and Unbalanced Output: 20-20,000Hz (+0/-.5dB)
    • Monitor Output: 50-17,000Hz (-3dB)

Noise Level

    • Left & Right Channel:-120dBu (A weighted, Input Equivalent Level)
    • T.H.D.: less than 0.005% @ 1KHz (+10dBu output)

MIC Input Level

    • LO -20 dBu Gain -6Db
    • HI -3dBu Gain +45Db

Monitor Output

    • 3.5mm Stereo: -4dBu (32 ohm load)
    • (Recommended load 16-100 ohms)

Maximum Output Level

  • Balanced Output: +20dBu (5K ohms)
  • Unbalanced Output (3.5mm) -19dBu (2K ohms)

[/one_half]

[one_half_last]

    Battery Type/Duration

  • 6 – AA Alkaline – 15 hours

Current Drain

  • 47mA nominal (Phantom Power Off)
  • 100mA maximum (Phantom Power On)

Phantom Power

  • Voltage: 48VDC (+/- 4VDC)

Dimensions

  • Size: 53.5H x 170W x 120D mm (2.19 x 6.93 x 4.75 inches)
  • Weight w/o Battery: 26.45 ounces (750 grams)

[/one_half_last]
