WHX-PRO VHF Wireless Handheld Microphone System

$193.00

PRO Series VHF wireless microphone kit with handheld microphone/transmitter and camera mount receiver.

Features

  • Single Channel VHF wireless system
  • WM/T-PRO Handheld microphone/transmitter
  • WR-PRO Camera Mount Receiver
  • 2 selectable operating frequencies
  • Connects into DSLR camera’s mic input
  • Operates in the low-interference VHF band
  • Transmit audio up to 300 feet away
  • 2 year warranty

Description

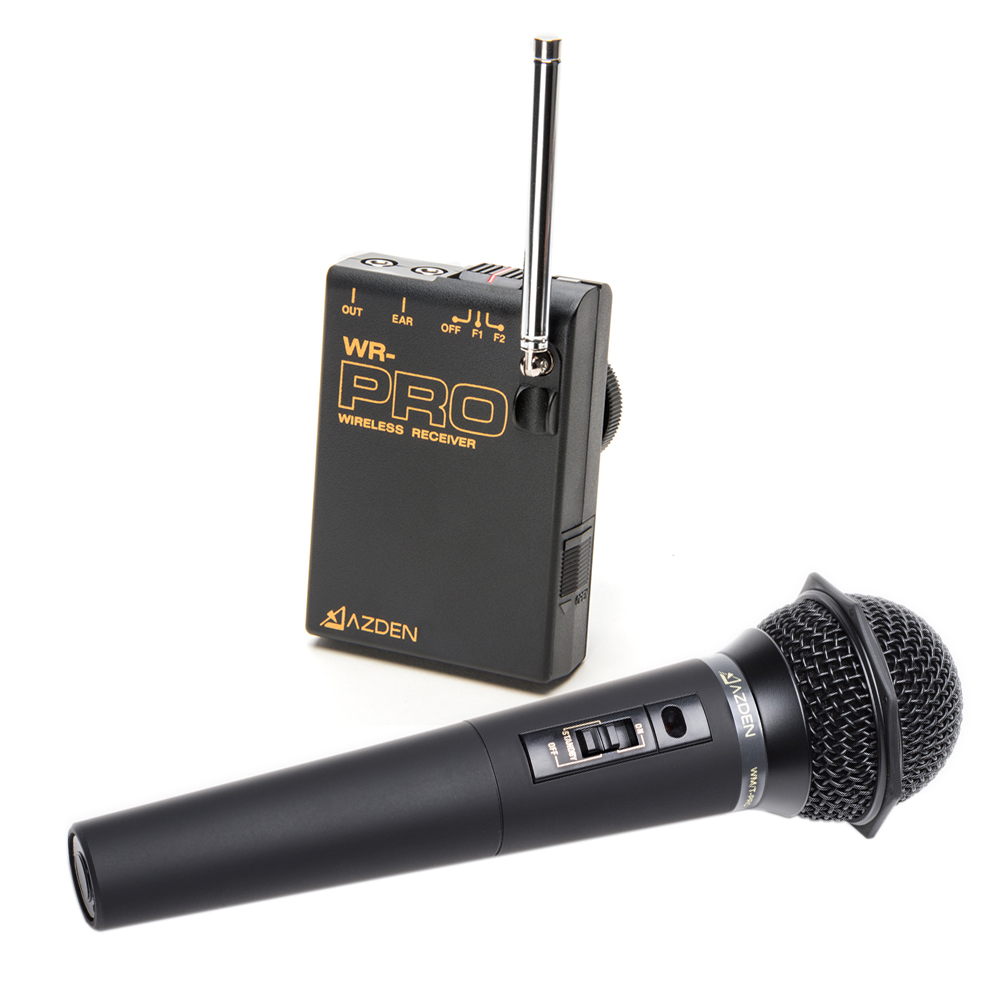

The WHX-PRO is an easy to use and affordable wireless audio system combining the WM/T-PRO handheld transmitter and WR-PRO camera mount receiver.

The WM/T-PRO is a handheld microphone with a built-in transmitter. It transmits on the standard “PRO” frequencies (169.445MHz and 170.245MHz) and is compatible with all PRO Series receivers. The WM/T-PRO has a standby switch to mute audio and a rubberized coating to reduce handling noise. Runs on a single “AA” battery for up to 10 hours of continuous use.

The WR-PRO is a single channel receiver, but has two selectable operating frequencies to choose from (169.445MHz and 170.245MHz) giving the user an option in case one channel has interference. Comes with camera shoe mount and a 3.5mm mono to stereo microphone output cable.

In The Box

  • WR-PRO VHF Receiver
  • WM/T-PRO VHF Handheld Mic/Transmitter
  • Mono to stereo output cable
  • Shoe Mount
  • Hook & Loop Mounting Tape
  • Ear Phone Monitor
  • Manual

Share your thoughts!

Let us know what you think...

What others are saying

There are no contributions yet.

×

Login

Register

A link to set a new password will be sent to your email address.

Your personal data will be used to support your experience throughout this website, to manage access to your account, and for other purposes described in our privacy policy.

Continue as a Guest

Don't have an account? Sign Up

WM/T-PRO

  • TRANSMISSION FREQUENCY: F1: 169.445MHz; F2: 170.245MHz
  • ANTENNA: Internal Antenna
  • MIC UNIT: Uni Dynamic
  • BATTERY: 1.5V (AA) x 1 (not included)
  • POWER CONSUMPTION: 100mA
  • RF OUTPUT: 10mW
  • IMPEDANCE: 8 k ohms
  • BATTERY LIFE: 8 to 10 Hours
  • DIMENSIONS: 62mm (Ø) x 211 mm – (2.4″ x 8.3″)
  • WEIGHT (including battery): 170g (6.0 oz)

WR-PRO

  • Reception Frequency: F1: 169.445MHz; F2: 170.245MHz
  • Receiver type: Double superheterodyne
  • Sensitivity: 2mV @ S/N of 40dB
  • Battery: 9V x1 Alkaline (not included)
  • Power consumption: 25mA
  • Monitor output: 1V @ 30Ω, Modulation frequency: 1kHz, Deviation: +/-7kHz
  • Mic output: 8mV w/10kΩ load, Modulation frequency: 1kHz, Deviation: +/-7kHz
  • Mic output impedance: 300Ω
  • Dimensions: 86(h) x 60(w) x 21.5(d) mm (3.3” x 2.4” x 0.85”)
  • Weight w/battery: 128g (4.5oz)
