SMX-30V Stereo/Mono Mixable Video Microphone

(3 customer reviews)

$299.00

Features

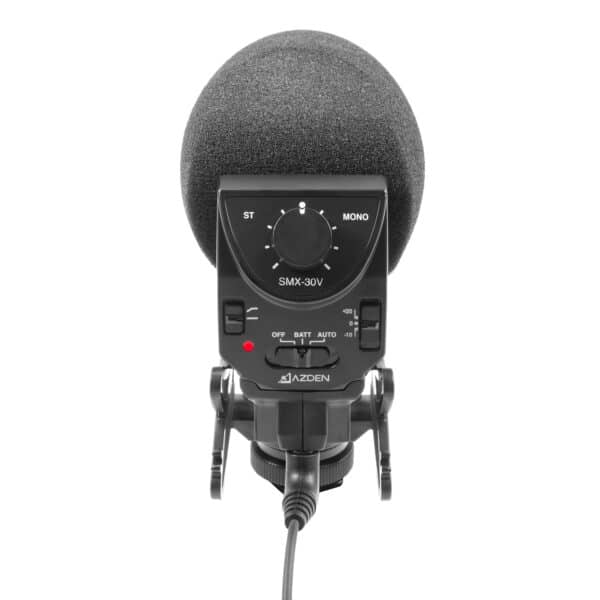

  • Mix audio together from the stereo and mono-shotgun microphones
  • Or set the mixing dial to 100% stereo or 100% mono
  • Stepless variable mixing potentiometer
  • Swivel mount adjusts aim of microphone up to 30º to the left or right
  • +20dB gain booster alleviates noise produced by low-quality camera preamps
  • -10dB pad for loud sound environments
  • Auto power mode turns microphone on/off with camera
  • Low-cut filter selectable at 60 Hz, 3 dB/octave
  • Detachable audio output cable

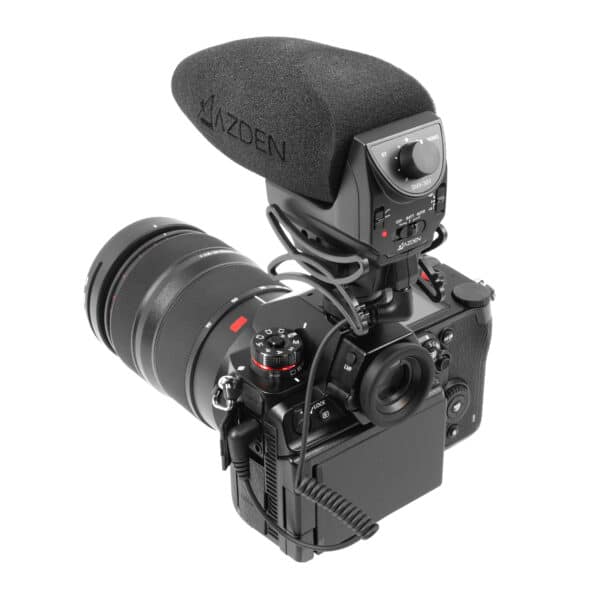

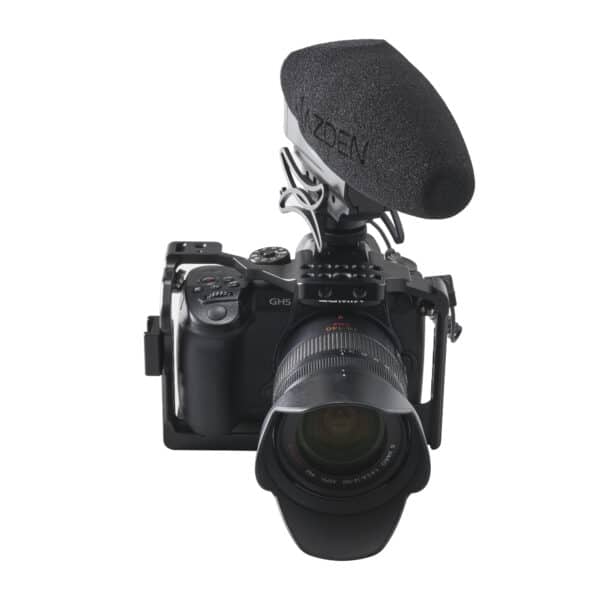

  • Integrated shock-absorbing shoe-mount with 1/4”-20 thread
  • 10 year warranty with registration

Description

SMX-30V

Stereo/Mono Mixable Video Microphone

With the SMX-30V, Azden takes their innovation of a switchable stereo/mono microphone to another level by incorporating a mixing dial. The first video microphone of its kind, the SMX-30V lets the user choose from using 100% of the stereo microphone, 100% of the mono-shotgun microphone, or any mix in between. Recording a dialogue scene but want to incorporate some of the environment’s ambience? Mix in a little of the stereo microphone. Recording a musical performance but want to tighten up the center stereo image? Mix in some audio from the mono-shotgun microphone. The possibilities are endless!

SMX-30V

Stereo/Mono Mixable Video Microphone

With the SMX-30V, Azden takes their innovation of a switchable stereo/mono microphone to another level by incorporating a mixing dial. The first video microphone of its kind, the SMX-30V lets the user choose from using 100% of the stereo microphone, 100% of the mono-shotgun microphone, or any mix in between. Recording a dialogue scene but want to incorporate some of the environment’s ambience? Mix in a little of the stereo microphone. Recording a musical performance but want to tighten up the center stereo image? Mix in some audio from the mono-shotgun microphone. The possibilities are endless!

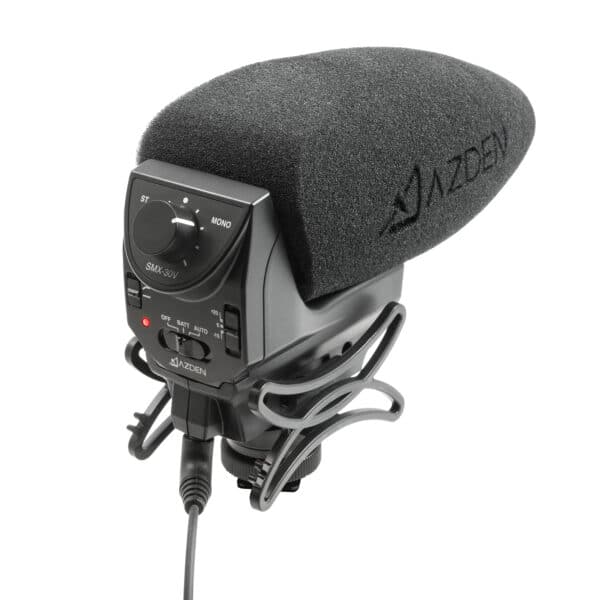

A Dual Microphone With Complete Control

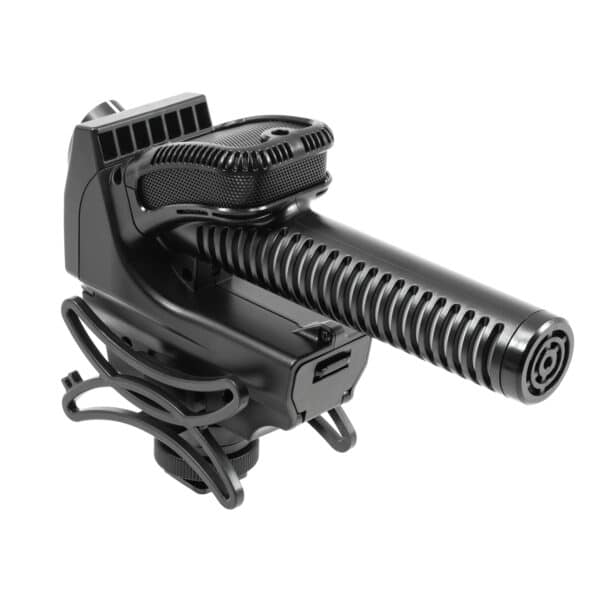

The SMX-30V is like having a stereo microphone, a shotgun microphone and an audio mixer all combined into one unit. To achieve this, there are three microphone elements in total: two located at the top, angled at 90º for capturing a realistic stereo image, and one inside a 4.5-inch long interference tube for directional audio capture. Combined with a stepless mixing knob, you have complete control over how much signal from each microphone to send to your camera.

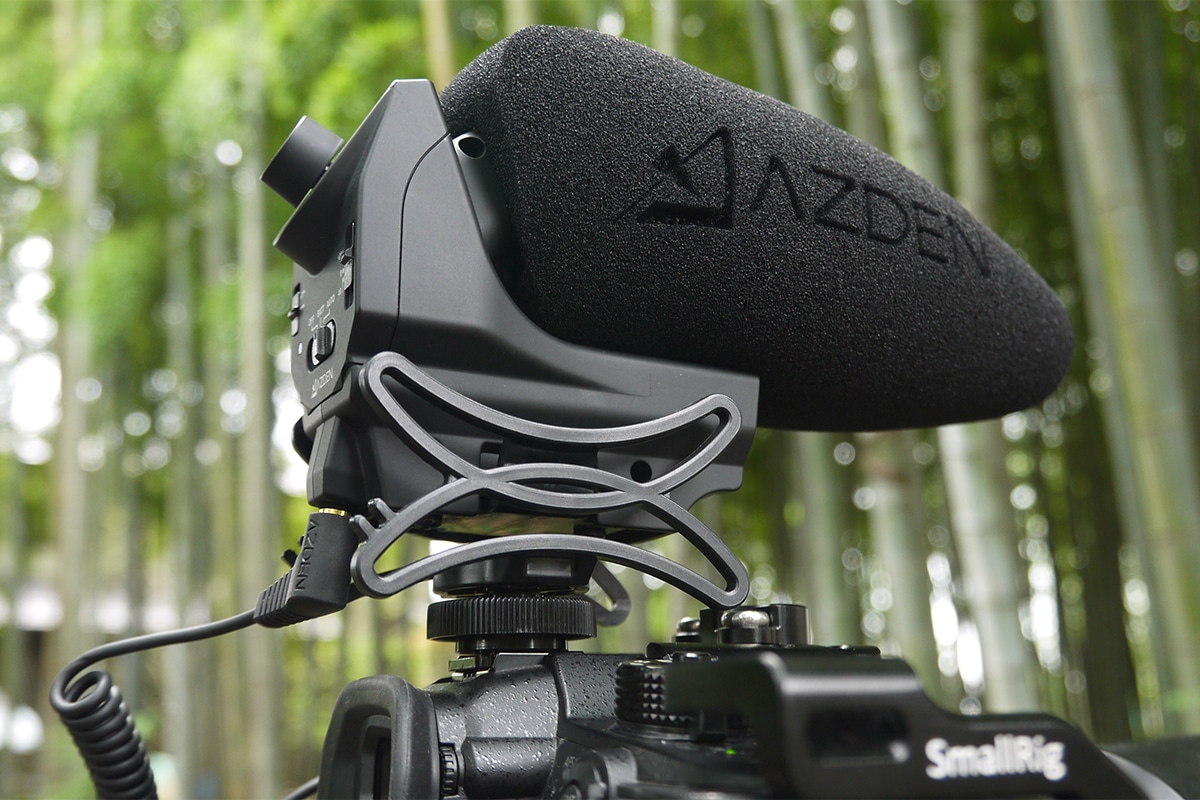

Swiveling Shock-Mount

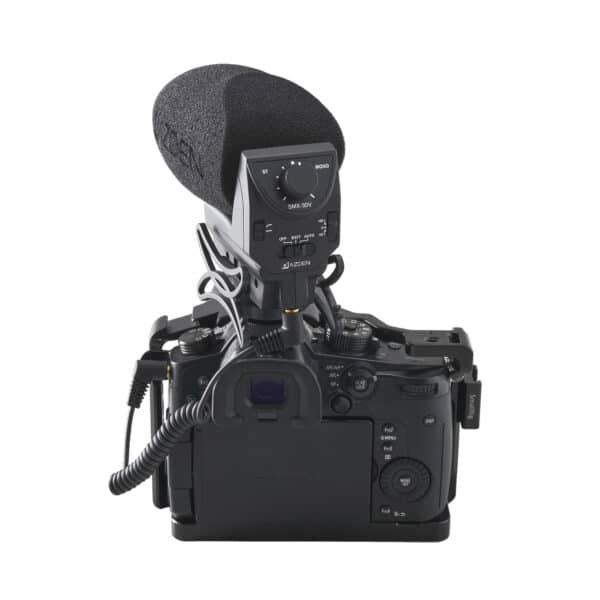

Another unique feature on the SMX-30V is the swiveling shock-mount, which enables rotation of the microphone 30º to the left or right. This is a handy feature any time your sound source is not centered in-frame, allowing you to aim the microphone at your subject, thereby getting the most direct sound possible. In addition, the mount itself is designed to absorb vibrations and isolate the microphone from handling noise. The bottom of the mount allows for attachment to a standard camera cold-shoe slot, or via a ¼”-20 threaded stud.

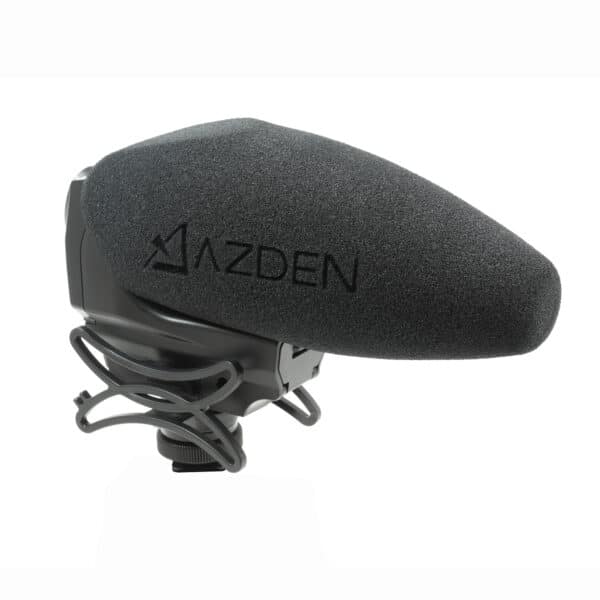

Isolating Shock Mount

Made from a virtually unbreakable composite material, the shock mount effectively isolates the microphone from the vibrations created by handling a camera. Designed to mount on top of a camera’s cold shoe, a threaded ¼”-20 tap is also available for boompole and accessory bar mounting.

Improved Battery Life

Battery life in the SMX-30V has been improved over the previous model to last up to 100 hours on a pair of alkaline AA batteries.

Detachable Output Cable

Audio output via a 3.5 mm mini-jack provides flexibility to connect various third party audio cables. A high-quality, coiled microphone output cable is included with the microphone.

Low-Cut Filter

When engaged, the Low-Cut Filter (or High-Pass Filter) reduces low-frequencies which can be helpful in mitigating low-frequency noise from sources such as HVAC systems, wind or passing cars.

Auto Power

Setting to AUTO will turn the microphone on and off with your camera automatically, saving you from losing a great take and conserving battery.

3-Step Gain Control

The 3 step gain control has +20 dB, 0 and -10 dB settings. Adding 20 dB of gain to the microphone output is a great way to overcome noisy mic preamps, or to simply boost quiet audio. Reducing the gain by 10 dB is most useful to protect against distortion in loud environments.

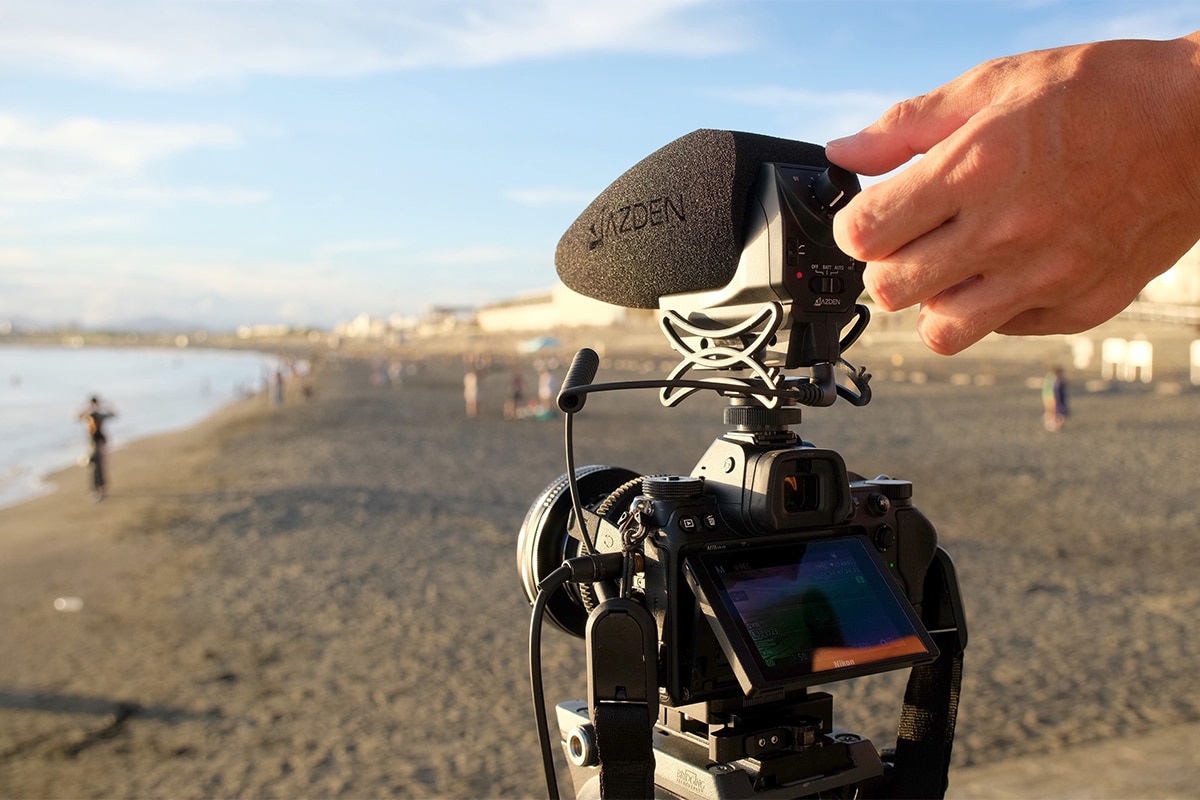

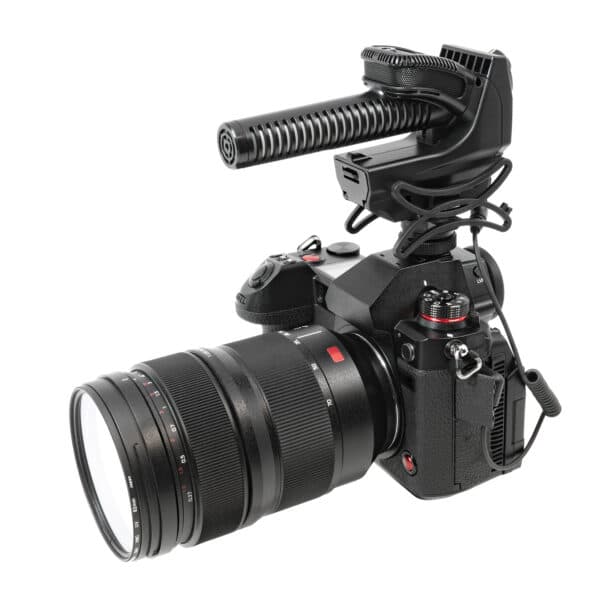

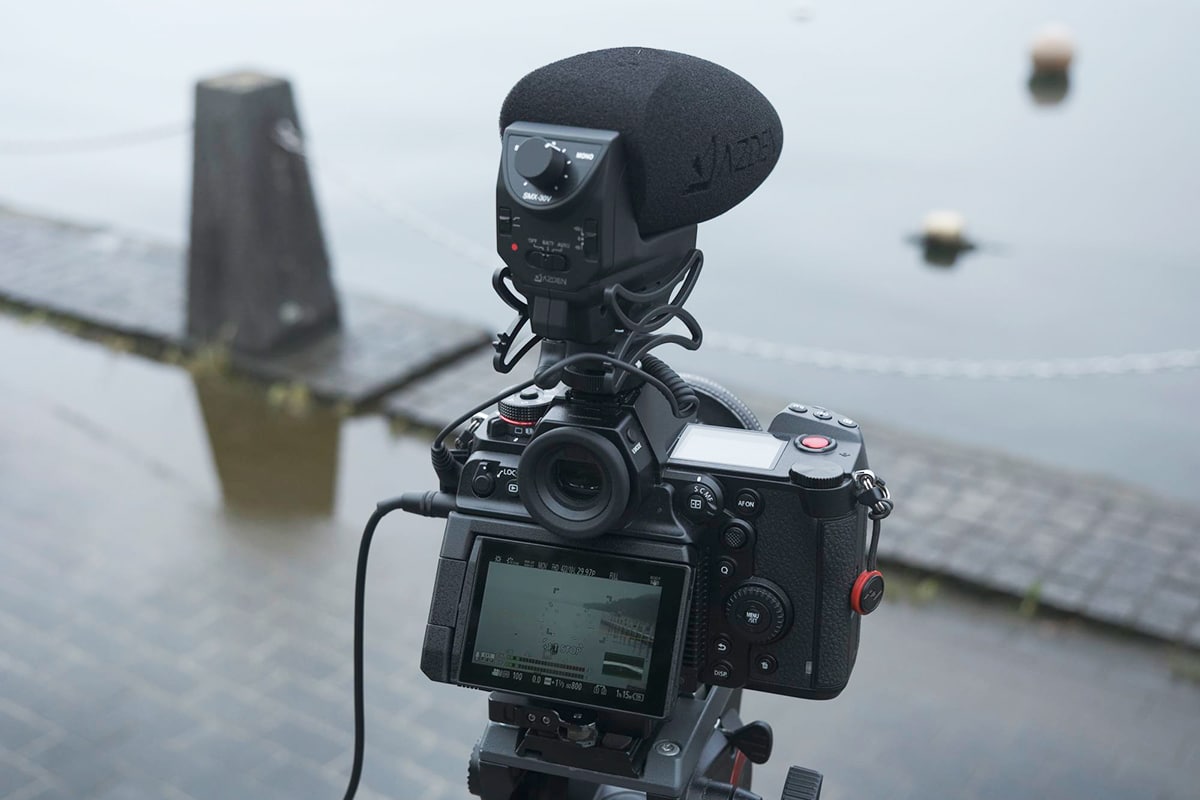

GALLERY

SPECIFICATIONS

Polar Pattern:Mono: Super-Cardioid Stereo: Cardioid (90º)
Freq Resp:40 Hz - 20k Hz
Sensitivity:-38 dB @ 1kHz
Dyn Range:118 dB
S/N Ratio:82 dB, 1k Hz@1Pa
Max Input Level:126 dB SPL (1kHz@ 1% T.H.D.)
Max Output Level:+10.2 dBu
Output Imp:75 Ω
Power Req:AA batteries x2
Output Conn:3.5 mm Stereo mini-jack
Power Switch:Off, Battery, Auto
Gain Control:-10 dB, 0 dB, +20 dB
Low-Cut Filter:60 Hz, 3 dB/octave
Dims:47 mm x 111 mm x 154 mm
Weight:160 g
Accessories:Windscreen, Carrying Pouch, Stereo 3.5 mm Audio Cable

POLAR PATTERNS

MONO

STEREO

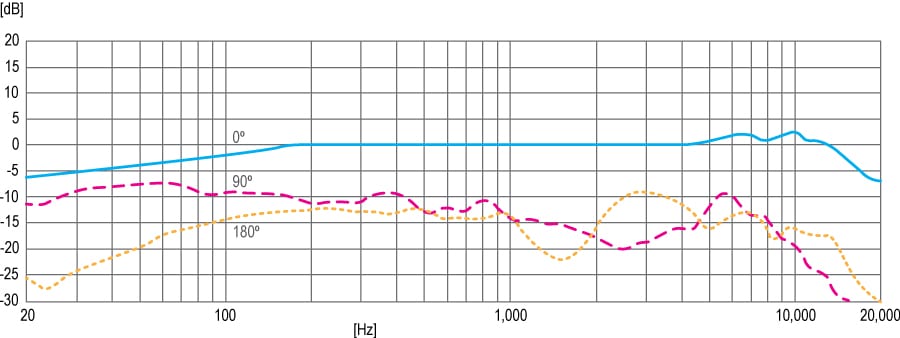

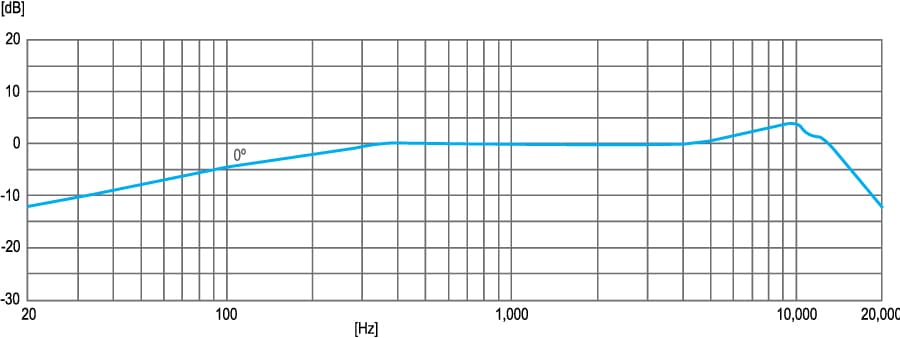

FREQUENCY CHARTS

MONO

STEREO

Share your thoughts!

4.67 out of 5 stars

3 reviews

Let us know what you think...

What others are saying

  1. One person found this helpful
    Lars-Goeran

    Best mic I ever used!

    Lars-Goeran

    Verified Buyer @ B&H
    It catched crystal clear audio in full stereo, mono and mixed. It is also easy to use. But I was a little bit disappointed then the battery was empty after a night in automatic mode. I now know it consume power in auto also, but not so much. A minor problem.

    (1) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  2. Greg

    Outstanding 2-in-1 Mic!

    Greg

    Verified Buyer @ B&H
    I bought this so I could record drumline performances (and also for higher quality interview audio when a lav mic wasn’t really an option). I love the sound of this. I really like the +20DB option so my D7500 records the audio very quietly. I did have to experiment on what to set the levels at for the D7500 mic sensitivity but once dialed in it’s good.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  3. Laurence Boyett

    Once the knob is set it works fine, just don't adjust the knob while recording.

    Laurence Boyett (verified owner)

    Once the knob is set to the preferred setting the sound is fine. HOWEVER, do not adjust the knob while recording, or a loud crackling will be inducted into the track. I tried to adjust the balance between Shotgun & Stereo under several different recording levels and any time I slightly turned the knob crackling was recorded. I had to create several independent test tracks at different settings prior to recording the keeper track. This may not be an issue for some unless you are trying to vary between focusing on a specific sound source (speaker) then adjusting to capture ambient while recording.

    Otherwise, the sound quality is very good when the desired setting is made prior to hitting record. In this manner, the SMX-30V functions similarly to the SMX-30. Select your setting then record your video/sound.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • One person found this helpful
      Azden

      Azden

      Hi Laurence, it should not be the case that the mixing knob causes any crackling whatsoever. If that is happening please contact our support team for warranty service.
      Warranty

      However, some handling noise from touching the mic is expected and unavoidable.

      (1) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

×
