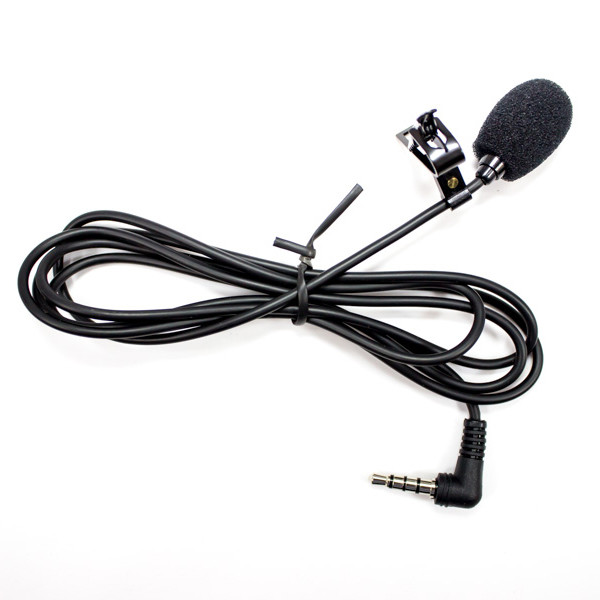

EX-503XD Standard Lapel Microphone for PRO-XD



Lapel microphone for the PRO-XD Digital Wireless Microphone System. Omni-directional mic with TRRS mini-plug output. Comes with lapel clip. Also works with smartphones and tablets that use a standard TRRS headset input.


  • Mic Element: Electret Condenser
  • Polar Pattern: Omni-Directional
  • Freq. Response: 30Hz – 20kHz
  • Sensitivity: -46dB at 1kHz (0dB=1V/Pa)
  • Impedance: 2.2kΩ (at 1kHz)
  • Power Requirement: Plug-in power DC 1-10V
  • Connector Type: Φ3.5mm TRRS
  • Cord Length: 105cm
