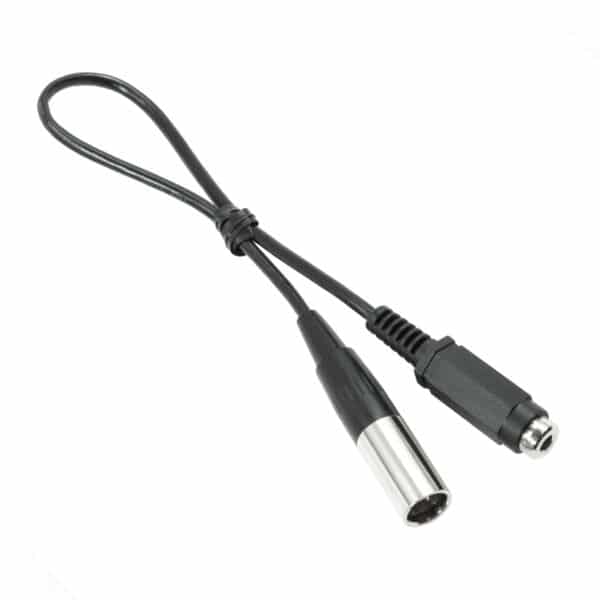

MX-M2 Audio Adapter Cable: Mini Jack to Mini XLR


3.5 mm TRS Female to 3-pin Mini XLR Male

Adapts unbalanced mini-plug audio output to balanced Mini XLR input.

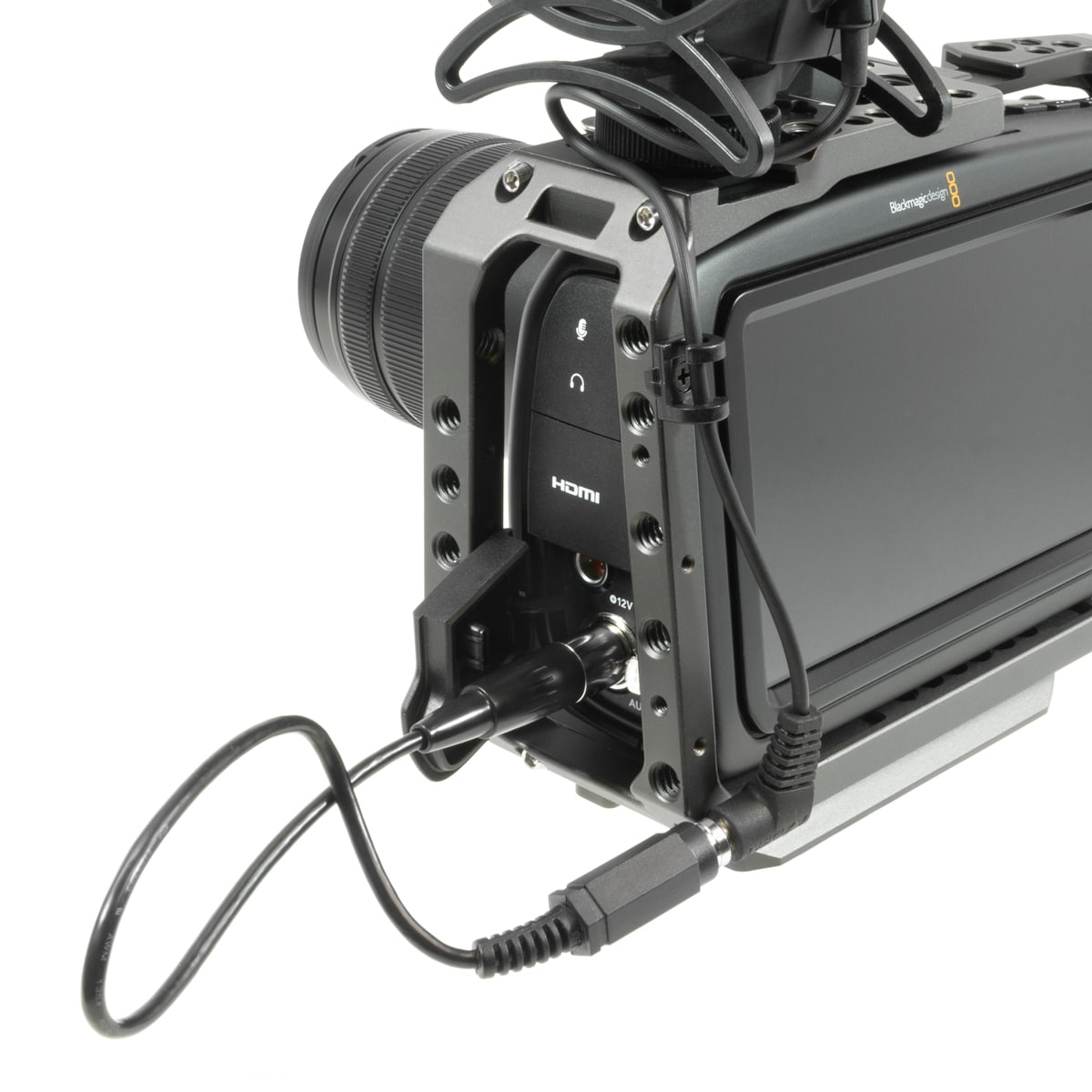

Connect your Azden microphone or wireless receiver to the pro-level Mini XLR audio input available on some small format cameras, such as the Blackmagic Pocket Cinema Camera 4K or 6K, with this female 3.5 mm TRS to male 3-pin Mini XLR adapter cable. Designed to adapt any unbalanced “dual-mono” mini-plug microphone output to a balanced Mini XLR input. The MX-M2 is especially useful for any microphone or wireless receiver with a fixed 3.5 mm output cable. The MX-M2 is compatible with all Azden single-channel wireless receivers and all non-stereo, self-powered microphones.

This cable is not suitable for true stereo outputs with distinct left & right audio signals.

Compatible with single-channel Azden wireless receivers, including PRO-XR, PRO-XRe, PRO-XD, and WLX-PRO+i.

Compatible with non-stereo Azden self-powered video microphone, such as SGM-990+i, SMX-15, SMX-30 and SMX-30V (when in mono mode).

Not compatible with lavalier microphones that require plug-in power.

Share your thoughts!

Let us know what you think...

What others are saying

There are no contributions yet.




A link to set a new password will be sent to your email address.

Your personal data will be used to support your experience throughout this website, to manage access to your account, and for other purposes described in our privacy policy.

Continue as a Guest

Don't have an account? Sign Up

Cable Length: 13.25″ (337 mm)
Overall Length: 14.50″ (369 mm)

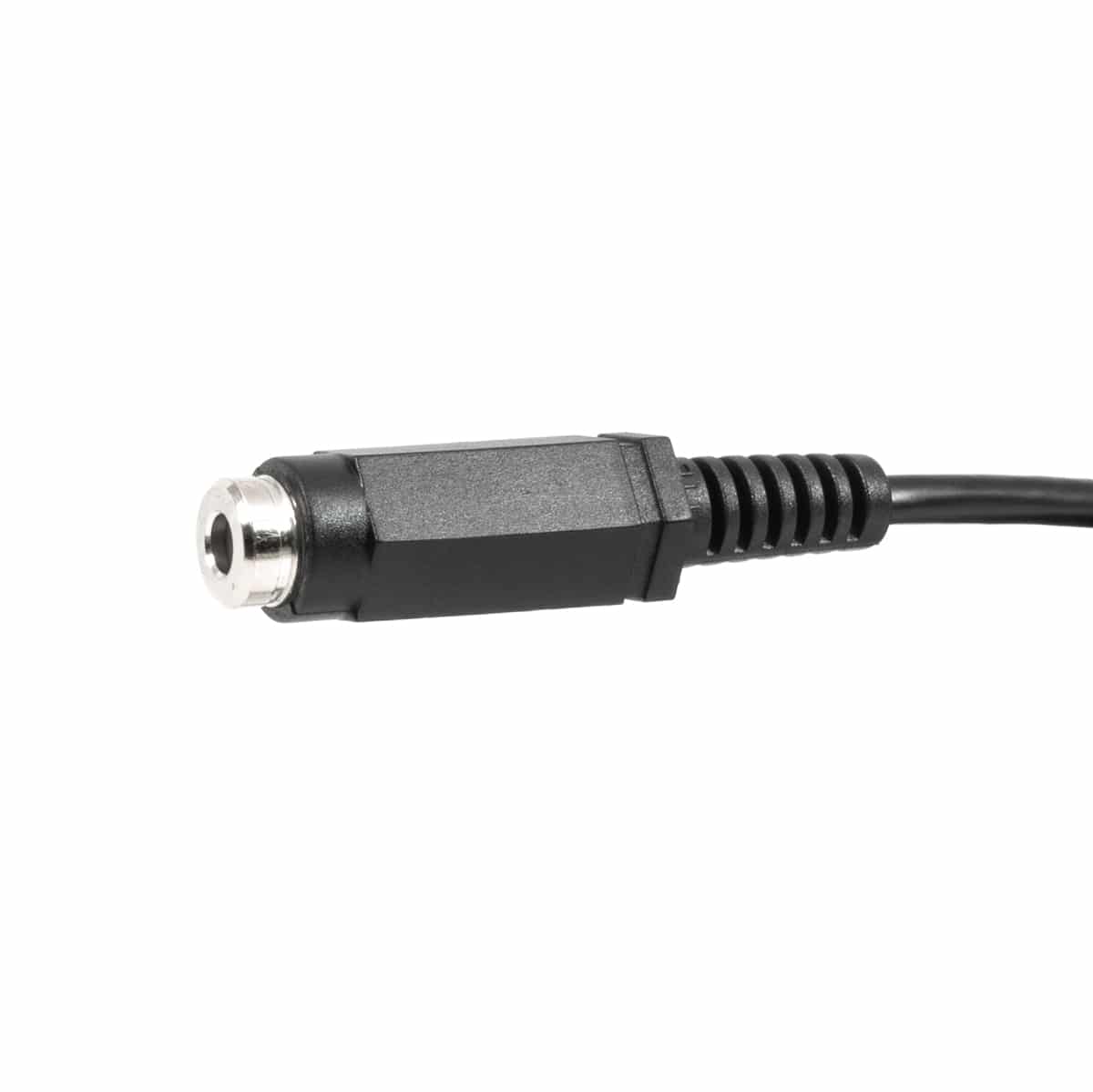

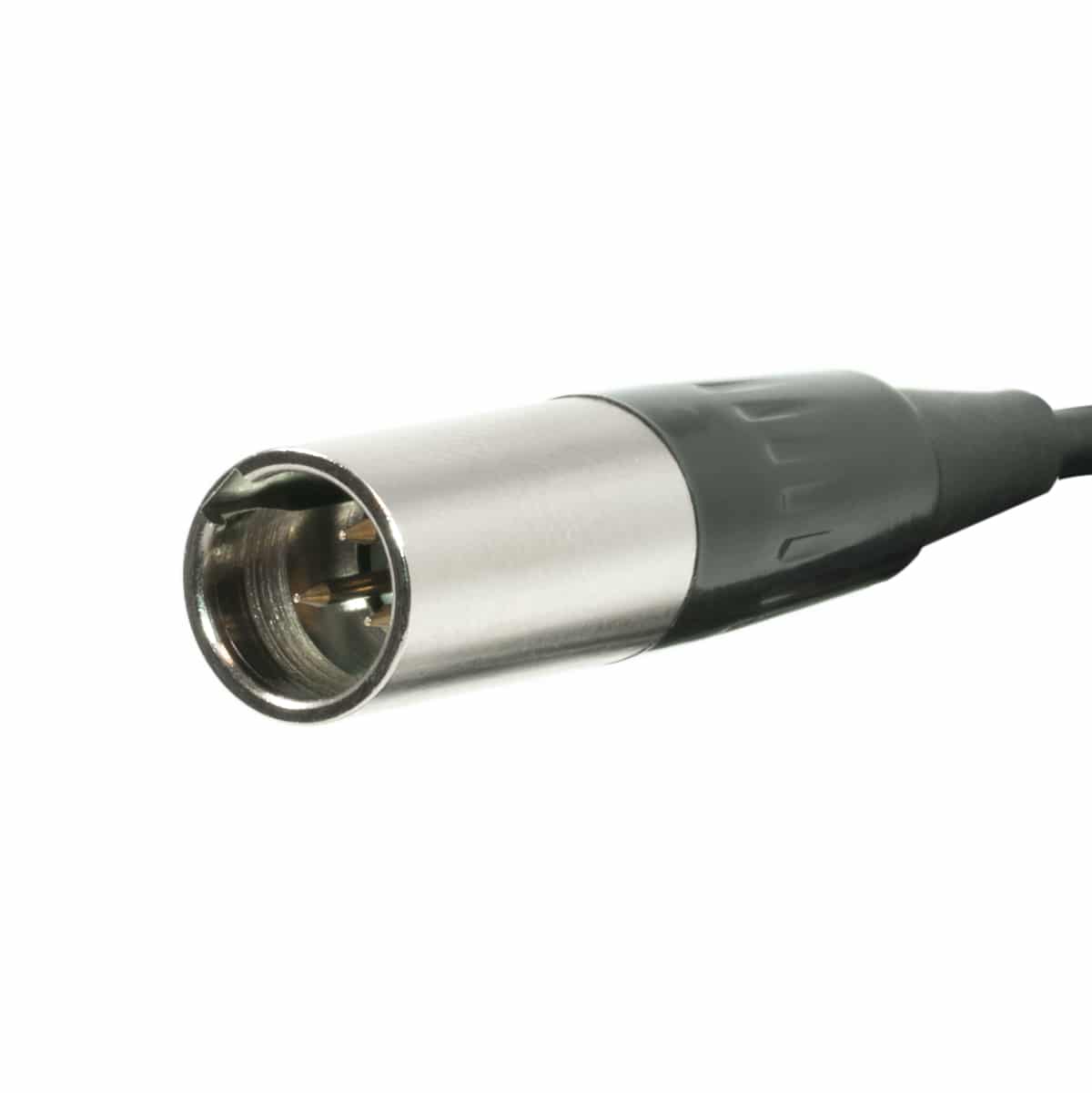

Connectors: 3.5 mm TRS female phono jack / 3-pin male Mini XLR
