310HT UHF Diversity Wireless Microphone System

DISCONTINUED

DISCONTINUED

Professional UHF diversity wireless microphone system with handheld mic/transmitter and camera mount receiver.

Features

  • 188 Selectable UHF Frequencies
  • New, Pivoting diversity High-Gain Antenna
  • Digital LCD Display w/ Multifunction Readout
  • 35HT handheld microphone/transmitter
  • Mini-Jack Out w/Supplied 24″ Mini-to-XLR Cable
  • Headphone Output on Receiver
  • Attached/Removable Shoe-Mount
  • Powered by 2 “AA” Batteries
  • 2 year warranty

Description

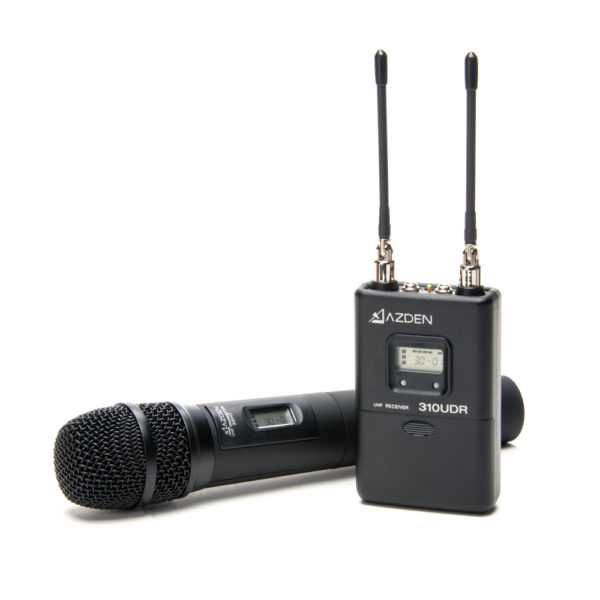

The Azden 310HT UHF On-Camera Handheld System is a powerful yet affordable UHF wireless microphone system for camera-mount applications. The system consists of Azden’s 35HT handheld microphone transmitter, and 310UDR camera-mount diversity receiver. With a feature set that includes 188 user selectable UHF frequencies, pivoting high-gain diversity antennas, and LCD digital display, the 310HT is guaranteed to meet the demands of consumer and professional video applications alike. The 310UDR receiver features main and headphone monitor outputs, and a removable shoe-mount adapter. Both the transmitter and receiver operate on standard AA alkaline batteries (not included).

In The Box

  • 310UDR receiver
  • Shoe mount
  • Mounting strips
  • MX-1 XLR output cable
  • 35HT handheld transmitter
  • 3.5mm mini-jack output cable
  • Manual
  • Hard shell carrying case



Share your thoughts!

Let us know what you think...

What others are saying

There are no contributions yet.

×

Login

Register

A link to set a new password will be sent to your email address.

Your personal data will be used to support your experience throughout this website, to manage access to your account, and for other purposes described in our privacy policy.

Continue as a Guest

Don't have an account? Sign Up

310UDR Receiver

Freq. Range: UHF 188 Frequencies (566.125-589.875MHz)
Type of Reception: FM
Oscillator: PLL Synthesized
RF Squelch Level: -95dBm
Frequency Response: 50Hz – 15kHz
S/N Ratio: >84dB 100% Dev.
Output Impedance: 1k Ohms
Audio Out: MIC Level – Balanced – 3.5mm Mini-Jack
-28 dBm – 100% deviation
Batteries: 2 “AA” Alkaline (2 x 1.5V) – 5-6 hours runtime
2 “AA” rechargeable Ni-MH (2 x 1.2V)
Dimen.: 2.48″W x 3.86″H x 1.12″D (63 x 98 x 28.5 mm)
Weight: Approx. 6.7oz (190g) w/batteries

35HT Transmitter

Freq. Range: UHF 188 Selectable (566.125-589.875MHz)
Oscillator: PLL Synthesized
RF Power: 25mW
Frequency Response: 50Hz – 15kHz
Max. Deviation: ±40kHz @ 1kHz Modulation, MIC Input – 65dBm (dev ±5kHz)
Batteries: 2 “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime
2 “AA” rechargeable Ni-MH (2 x 1.2V)
Dimensions: Φ1.89″ x 9.2″L (48 x 234.5 mm)
Weight Approx. 9.5oz (270g) w/batteries
