310UDR – 310 Series Diversity Receiver

(1 customer review)

Discontinued

DISCONTINUED

Diversity, UHF camera-mount wireless receiver. Works with 35BT, 35HT, 35XT transmitters.

Features

  • 188 Selectable UHF Frequencies
  • New, Pivoting diversity High-Gain Antenna
  • Digital LCD Display w/ Multifunction Readout

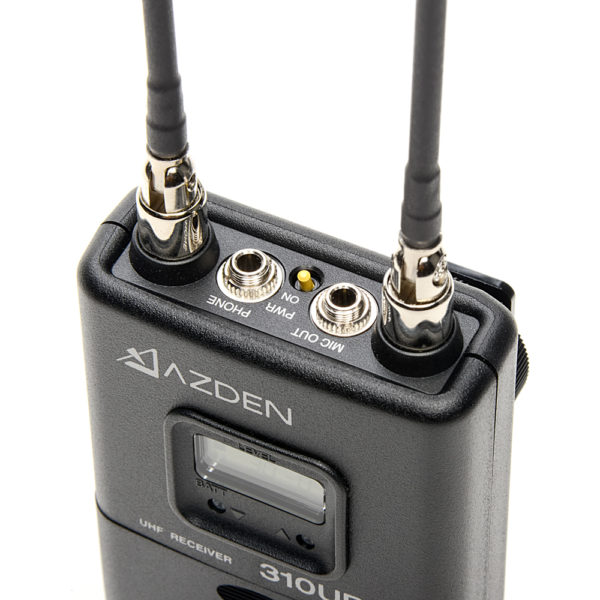

  • Mini-jack Microphone Output
  • Headphone Output on Receiver
  • Attached/Removable Shoe-Mount

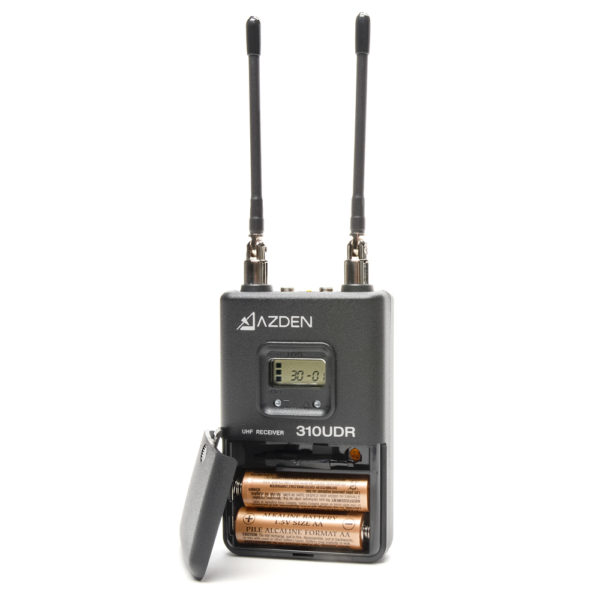

  • Powered by 2 “AA” Batteries (not included)
  • 2 year warranty

Description

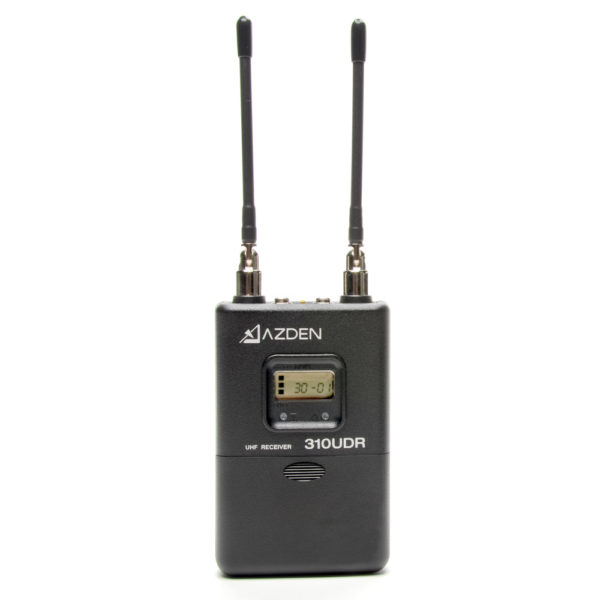

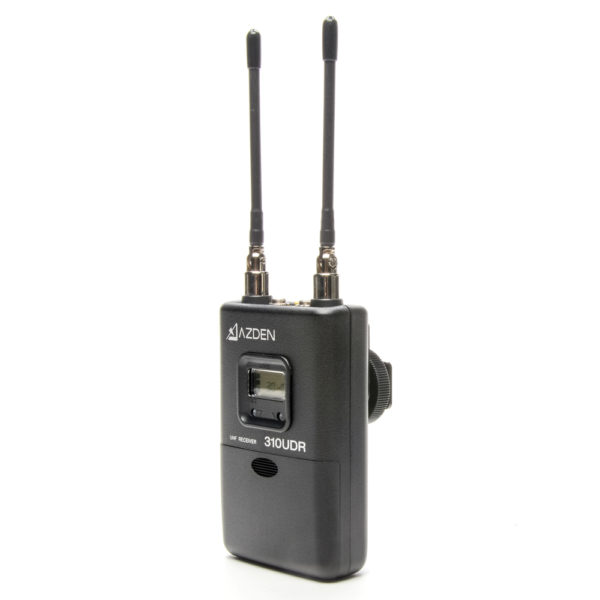

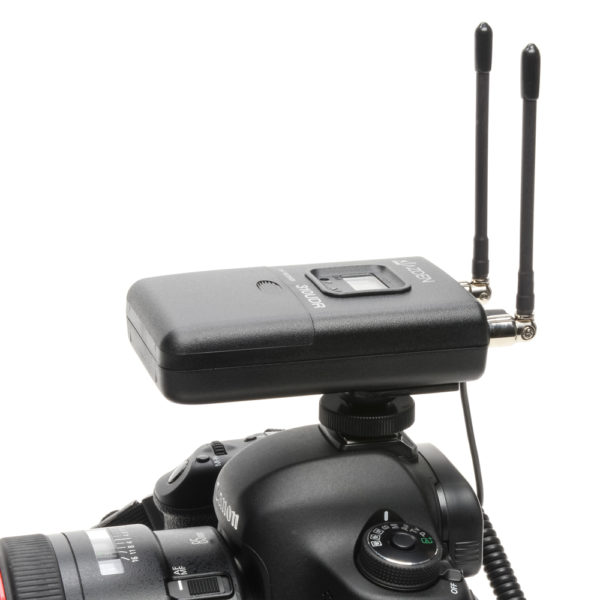

The 310UDR is a high quality, diversity UHF camera-mount wireless receiver that features 188 user-selectable frequencies displayed on an LCD screen to assure you of always finding a “free” channel. Also included are main and headphone monitor outputs, and a removable shoe-mount adapter. The 310UDR operates on standard AA alkaline batteries (not included). The 310UDR works with all 300 series transmitters, including the 35BT Belt-Pack transmitter, the 35HT Handheld microphone/transmitter and the 35XT Plug-In transmitter. Includes a 3.5mm stereo output audio cable. The MX-1 Mini to XLR Adapter Cable can be purchased separately.

  • Freq. Range: UHF 188 Frequencies (566.125-589.875MHz)
  • Type of Reception: FM
  • Oscillator: PLL Synthesized
  • RF Squelch Level: -95dBm
  • Frequency Response: 50Hz – 15kHz
  • S/N Ratio: >84dB 100% Dev.
  • Output Impedance: 1k Ohms
  • Audio Out: MIC Level – Balanced – 3.5mm Mini-Jack
  • -28 dBm – 100% deviation
  • Batteries: 2 “AA” Alkaline (2 x 1.5V) – 5-6 hours runtime
  • 2 “AA” rechargeable Ni-MH (2 x 1.2V)
  • Dimen.: 2.48″W x 3.86″H x 1.12″D (63 x 98 x 28.5 mm)
  • Weight: Approx. 6.7oz (190g) w/batteries
