310LH UHF Diversity Wireless Microphone System Combo

DISCONTINUED

DISCONTINUED

Features

  • 188 Selectable UHF Frequencies
  • New, Pivoting diversity High-Gain Antenna
  • Digital LCD Display w/ Multifunction Readout
  • 35HT handheld & 35BT body-pack transmitters
  • Mini-Jack Out w/Supplied 24″ Mini-to-XLR Cable
  • Headphone Output on Receiver
  • Attached/Removable Shoe-Mount
  • Powered by 2 “AA” Batteries
  • 2 year warranty

Description

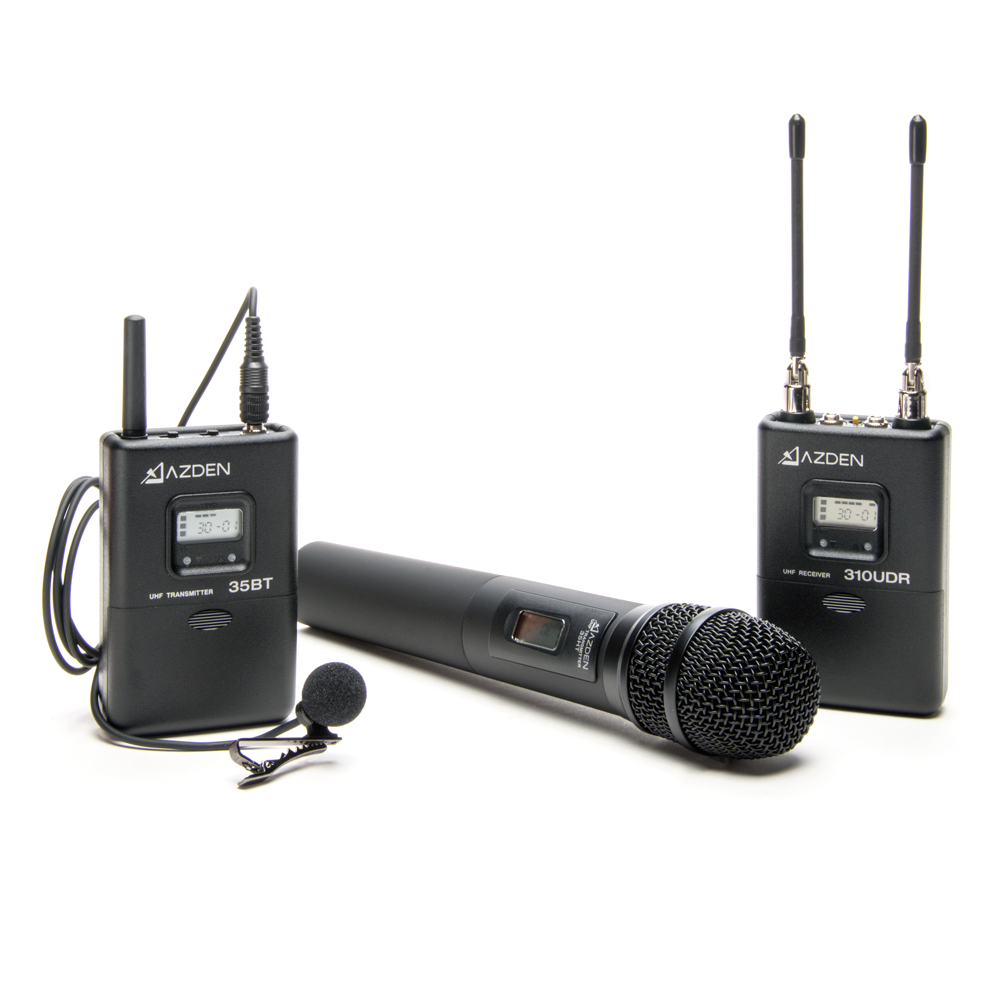

The Azden 310LH is a powerful yet affordable UHF wireless combo-microphone system for camera-mount applications. The system consists of Azden’s 35BT body-pack transmitter, EX-503L lavalier microphone, 35HT handheld microphone transmitter and 310UDR camera-mount diversity receiver. The inclusion of both the body-pack and handheld transmitters allows users the flexibility of choosing the right microphone for the right job. With a feature set that includes 188 user selectable UHF frequencies, pivoting high-gain diversity antennas, and LCD digital display, the 310LH is guaranteed to meet the demands of consumer and professional video applications alike. The 310UDR receiver features main and headphone monitor outputs, and a removable shoe-mount adapter. Both the transmitters and receiver operate on standard AA alkaline batteries (not included).

In The Box

  • 310UDR receiver
  • Shoe mount
  • Mounting strips
  • MX-1 XLR output cable
  • 3.5mm mini-jack output cable
  • 35BT body-pack transmitter
  • EX-503L omni-directional lapel microphone
  • 35HT handheld transmitter
  • Manual
  • Hard shell carrying case

310UDR Receiver

  • Freq. Range: UHF 188 Frequencies (566.125-589.875MHz)
  • Type of Reception: FM
  • Oscillator: PLL Synthesized
  • RF Squelch Level: -95dBm
  • Frequency Response: 50Hz – 15kHz
  • S/N Ratio: >84dB 100% Dev.
  • Output Impedance: 1k Ohms
  • Audio Out: MIC Level – Balanced – 3.5mm Mini-Jack
  • -28 dBm – 100% deviation
  • Batteries: 2 “AA” Alkaline (2 x 1.5V) – 5-6 hours runtime
  • 2 “AA” rechargeable Ni-MH (2 x 1.2V)
  • Dimen.: 2.48″W x 3.86″H x 1.12″D (63 x 98 x 28.5 mm)
  • Weight: Approx. 6.7oz (190g) w/batteries

35HT Transmitter

  • Freq. Range: UHF 188 Selectable (566.125-589.875MHz)
  • Oscillator: PLL Synthesized
  • RF Power: 25mW
  • Frequency Response: 50Hz – 15kHz
  • Max. Deviation: ±40kHz @ 1kHz Modulation, MIC Input – 65dBm (dev ±5kHz)
  • Batteries: 2 “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime
  • 2 “AA” rechargeable Ni-MH (2 x 1.2V)
  • Dimensions: Φ1.89″ x 9.2″L (48 x 234.5 mm)
  • Weight Approx. 9.5oz (270g) w/batteries

35BT Transmitter

  • Freq. Range: UHF 188 Selec. Freq. (566.125-589.875MHz)
  • Oscillator: PLL Synthesized
  • RF Power: 25mW
  • Frequency Response: 50Hz – 15kHz
  • Max. Deviation: ±40kHz @ 1kHz Mod., MIC Input – 11dBm
  • Batteries: 2 “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime
  • 2 “AA” rechargeable Ni-MH (2 x 1.2V)
  • Dimen: 2.52″W x 3.93″H x 1.16″D (64 x 100 x 27 mm)
  • Weight: Approx. 6oz (170g) w/batteries
