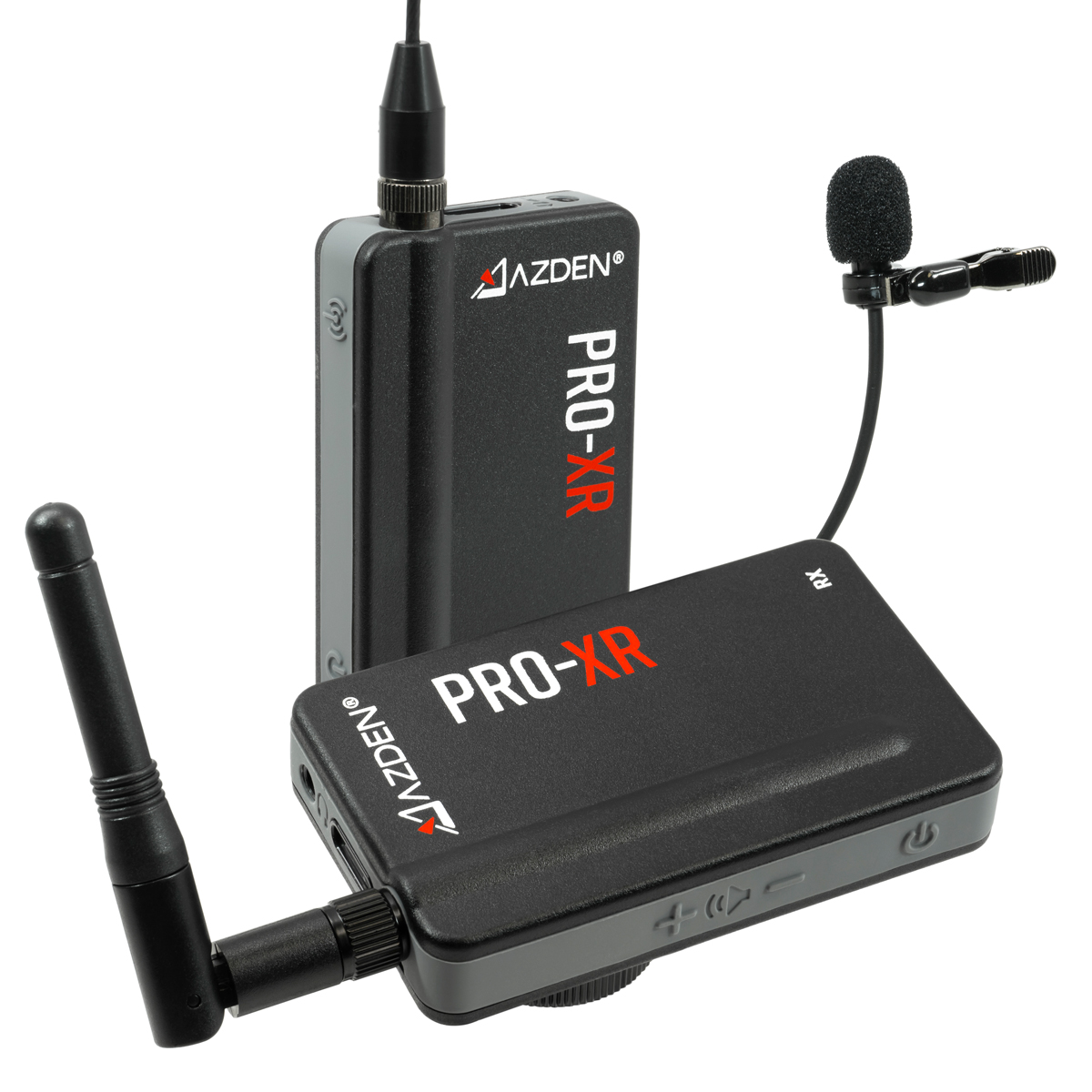

PRO-XR 2.4 GHz Wireless Microphone System

(2 customer reviews)


Reliable digital wireless lavalier microphone system for camera and mobile video applications.


  • For digital cameras and mobile devices
  • Proprietary digital technologies avoid 2.4 GHz interference
  • Adjustable transmitter output power
  • External antenna design
  • Up to 500’ range
  • Includes high-quality lavalier microphone
  • Includes smartphone mount
  • Rechargeable lithium-ion batteries
  • Runtime up to 20 hours on RX and 14 hours on TX
  • Six-step adjustable output gain
  • Headphone and microphone outputs / Line-in auxiliary input
  • 2 year warranty


The PRO-XR is a new kind of 2.4 GHz digital wireless microphone. Using several new technologies, it avoids the line-of-sight dependency and congestion problems that plague traditional 2.4 GHz wireless, resulting in an extremely reliable wireless microphone.

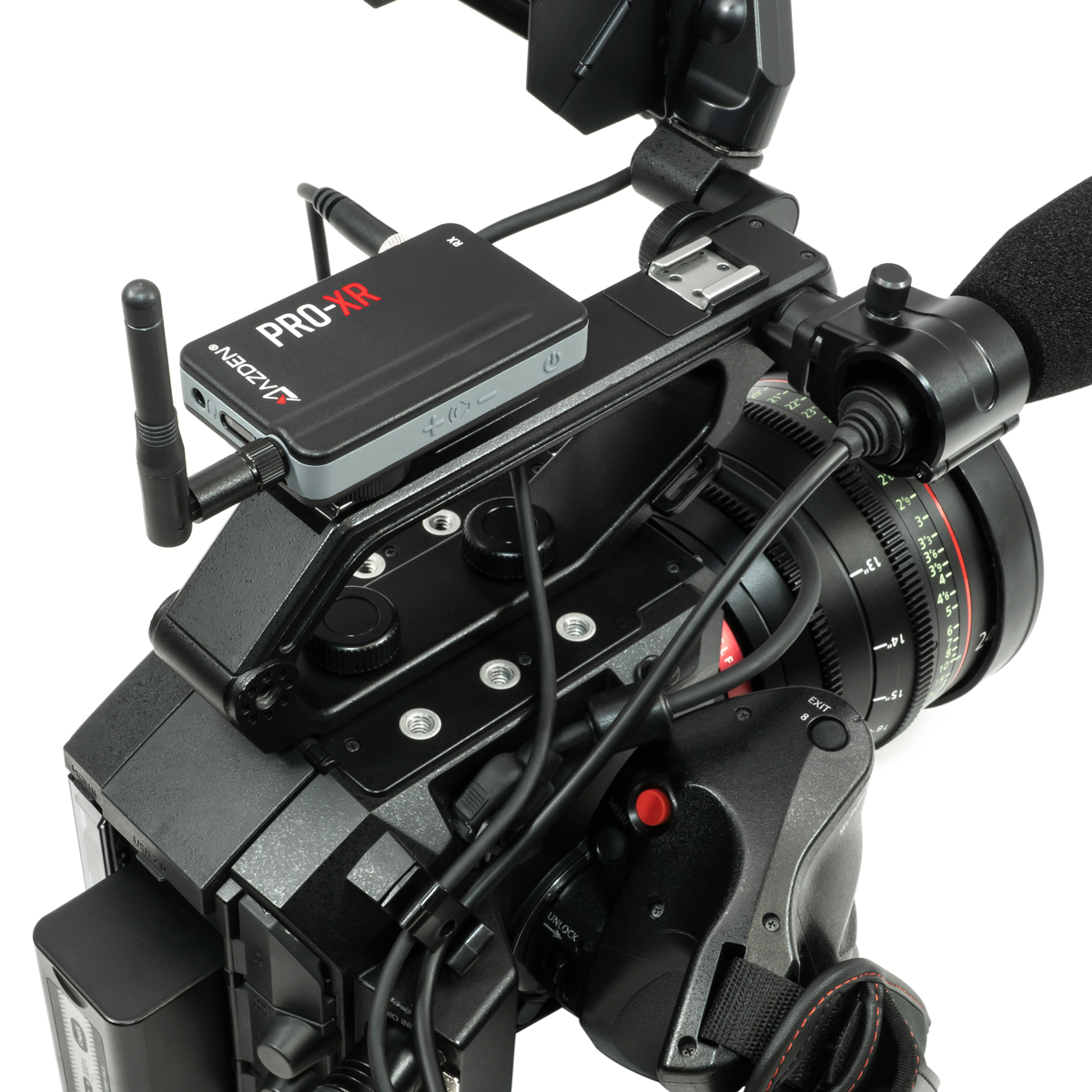

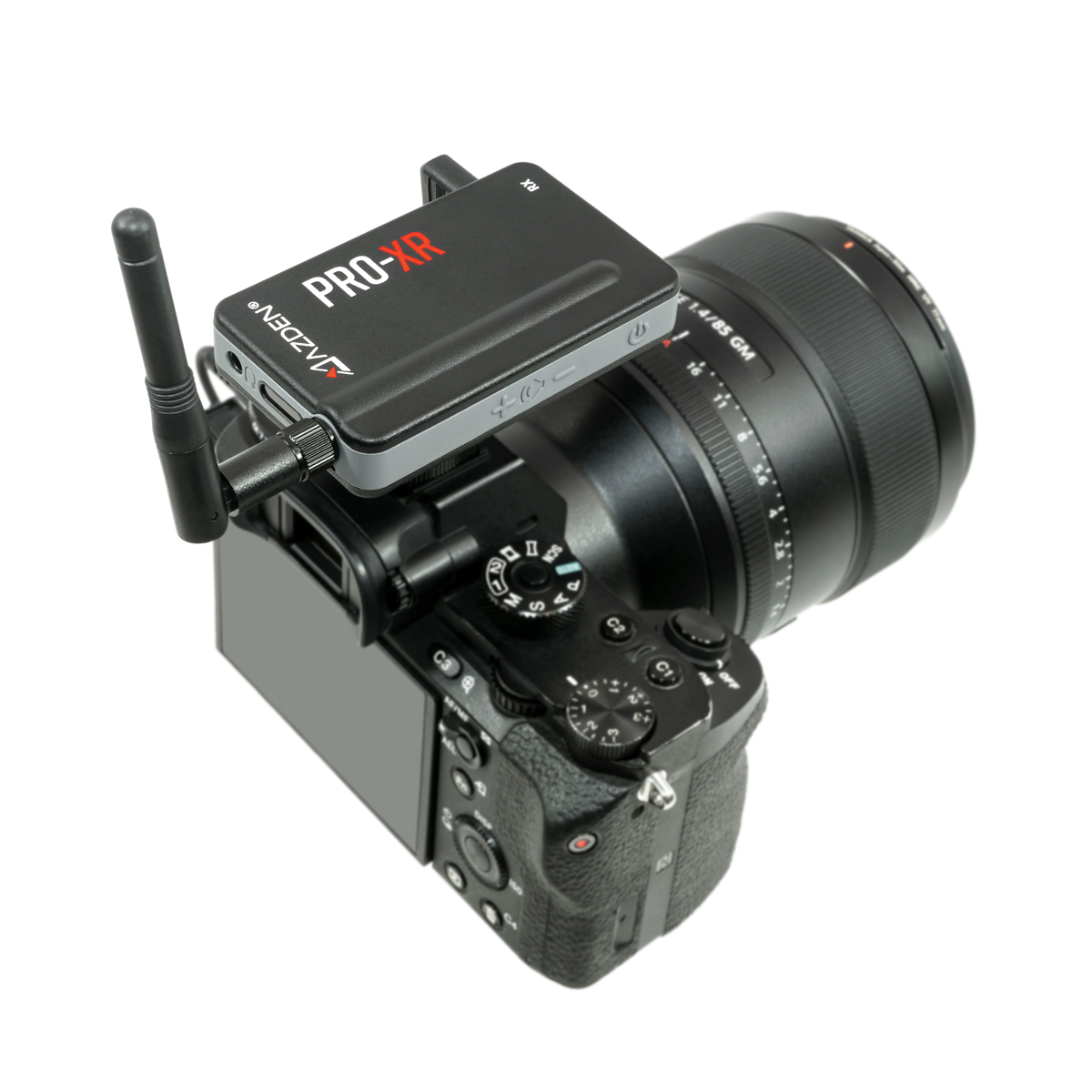

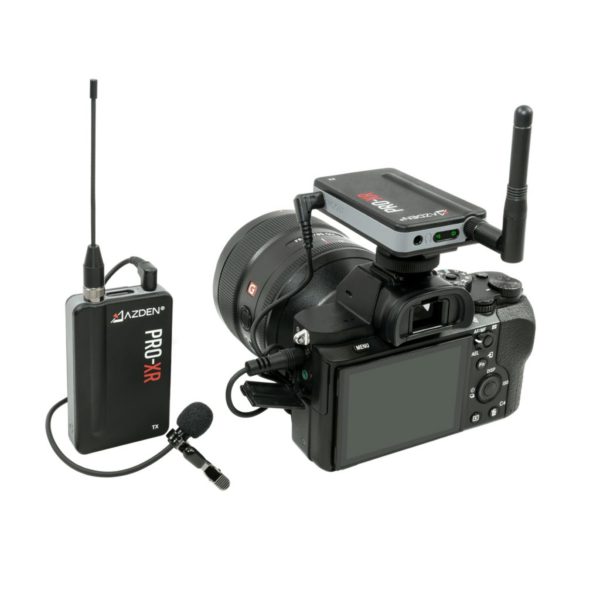

Easy-to-use, compact and lightweight, the PRO-XR is perfectly suited for video creators of all types. Whether you shoot with a DSLR camera, mirrorless camera, cinema camera or mobile device, the PRO-XR can deliver high-quality and dependable wireless audio for your videos.

Frequency Spectrum Auto-Scan

Once powered on, the PRO-XR automatically scans the 2.4 GHz frequency spectrum and selects the best available frequencies to use for its connection, thereby avoiding interference-prone frequency bands.

Automatic Interference Avoidance

The activity of 2.4 GHz devices in a given environment can change frequently and rapidly. That is why the PRO-XR constantly monitors this range and automatically and seamlessly changes its transmission to use different frequencies when it detects the possibility of interference.

Signal Redundancy Technology

Further fortifying the system’s resistance to interference, PRO-XR employs Azden’s proprietary Signal Redundancy Technology, in which the transmitter sends two copies of its signal to the receiver at all times, each on a different frequency. If the system predicts interference of the primary signal, it will instantly switch to using the secondary signal without any interruptions.

Adjustable Transmission Power

Change the transmission output power of the transmitter to adapt to challenging environments. Use the default 20 mW setting for optimal battery life and excellent performance in most situations. Optionally increase the output power to 50 mW or 100 mW for better performance at extreme distances, or to overcome line-of-sight obstructions and over-crowded Wi-Fi environments. Combining the 100 mW output with the use of the included high-gain transmitter antenna can extend the range of the system up to an incredible 500 feet!

External Antenna Design

While many other digital wireless systems are moving to under-performing internal antennas, the PRO-XR system (employs more reliable external antenna design and) comes with two interchangeable antenna options (for the transmitter): a flexible antenna for comfortable and inconspicuous wearing of the transmitter, and a high-gain antenna for increased performance especially at long distances and with line-of-sight obstruction.

Mobile Video Compatible

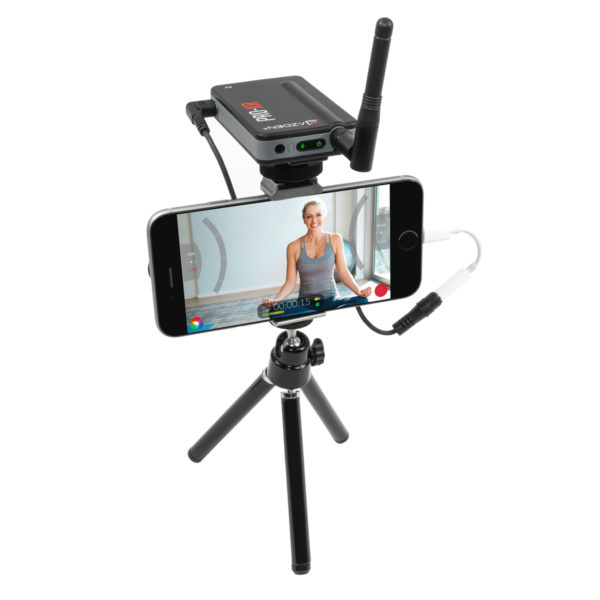

The PRO-XR is also compatible with smartphones and tablets out of the box. Easily mount the PRO-XR receiver to your smartphone with the included Smartphone Mount. A Lightning-to-headphone adapter cable is included for connection to iOS devices. A TRRS output cable is included for other devices with headphone jacks. No special apps are required to use the PRO-XR’s audio when shooting video on your mobile device.

Rechargeable Lithium-Ion Batteries

The built-in, rechargeable lithium-ion batteries provide up to 20 hours of run time on the receiver and 14 hours on the transmitter; plenty of power for a long day of shooting. Eliminates the hassles of single-use batteries and reduces e-waste. The system comes with a dual-USB charging cable and AC adapter.

Included Lavalier Microphone

The professional-grade, omni-directional lavalier microphone captures the full frequency range of 20 Hz to 20 kHz, ensuring crisp and clear recording of your subject’s voice. The angled 3.5 mm TRS plug allows compatibility with many other wireless systems and recorders.

Volume Control and Monitoring

The receiver includes a 3.5 mm headphone jack for monitoring, and a 6-step adjustable output gain control for optimizing audio levels with your camera.

Line-In Auxiliary Input

For extra flexibility, the transmitter allows for the connection of line-level audio devices via the 3.5 mm auxiliary input. This input can be connected to the output of an audio mixer, digital recorder or any other line-level source.

2-Year Warranty

The PRO-XR is backed by Azden’s 2-Year Warranty with online registration.

To adapt the receiver’s output for standard XLR audio inputs use our MX-R1 cable.
To adapt the receiver’s output for Mini XLR inputs, as found on Blackmagic’s Pocket Cinema Cameras, use our MX-M1 cable.
(Be advised that many 3rd party adapter cable solutions are not wired appropriately).

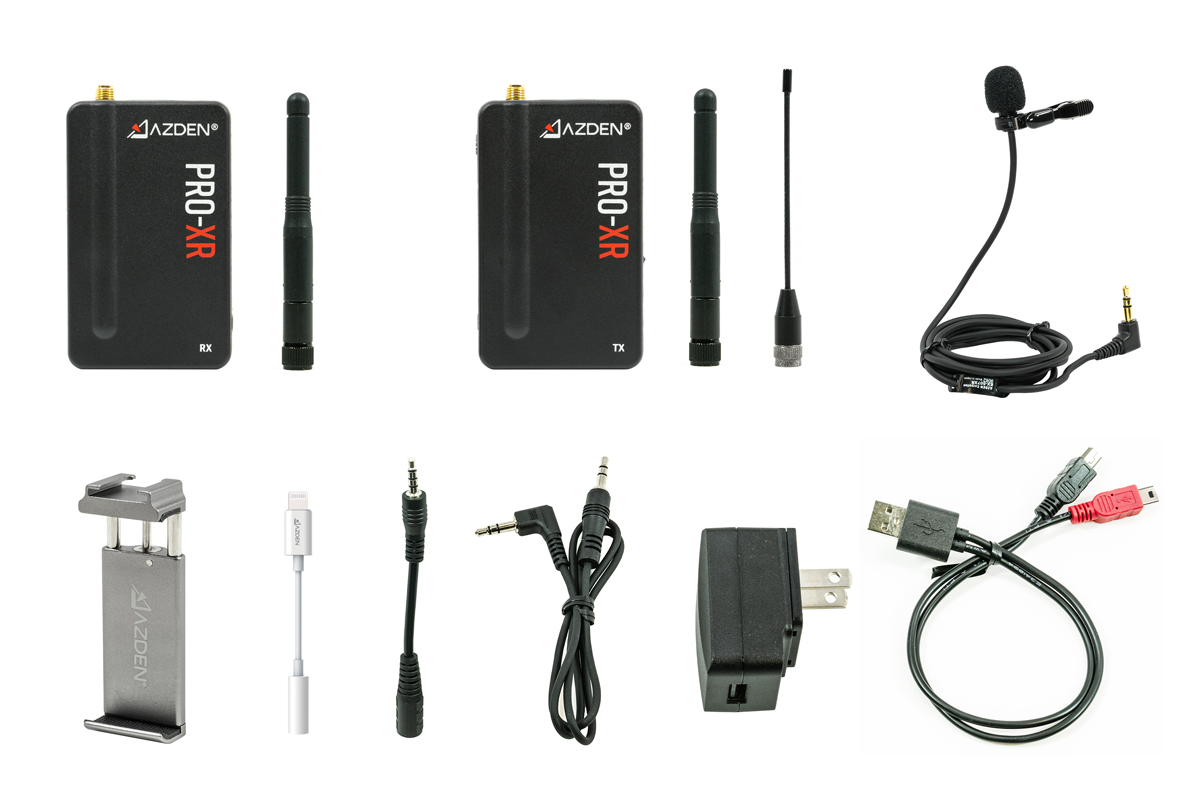

In The Box

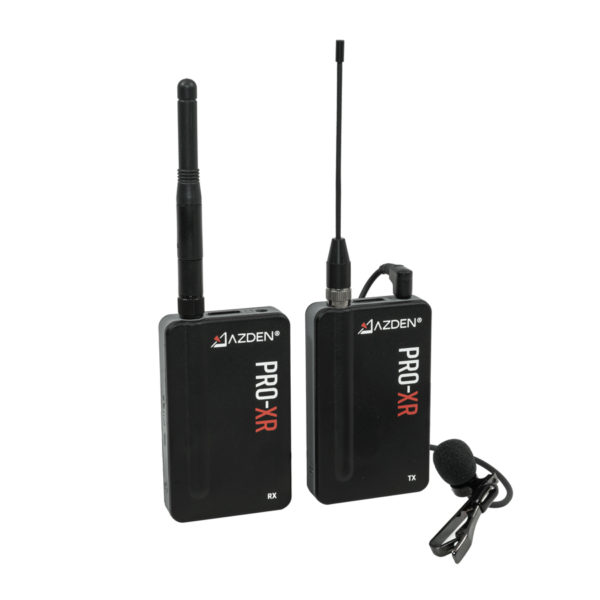

  • PRO-XRT Transmitter
  • PRO-XRR Receiver
  • EX-507XR Lapel Mic
  • Smartphone Mount
  • Audio Output Cable
  • TRS to TRRS Adapter Cable
  • iOS Lightning to Headphone Adapter
  • Dual-USB Charger & Cable
  • High-Gain Antenna (x2)
  • Flexible Antenna (TX)

Share your thoughts!

5 out of 5 stars

2 reviews

Let us know what you think...

What others are saying

  1. Kevin Towle

    Can novice video creator go from zero to hero with their sound? The Azden Pro-XR 2.4 wireless mic

    Kevin Towle (verified owner)

    When I say zero experience I mean zero experience with video creation. I had been using a Rode microphone which was ok but I needed something a little more (distance was a main factor in what I needed) substantially better than what I was using. Straight out of the box it worked and it was quick to understand the manual to get every thing put together. I have only it once but I have been very pleased. Watch for clothes creating a ruffling affect and where you place the microphone. Can’t wait to use it more in different environments.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  2. Miles Hale

    Great Sound!

    Miles Hale (verified owner)

    Easy to start using, charged up quickly, and what a clear sound. The system is well thought out and does as advertised- it Works!

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...




A link to set a new password will be sent to your email address.

Your personal data will be used to support your experience throughout this website, to manage access to your account, and for other purposes described in our privacy policy.

Continue as a Guest

Don't have an account? Sign Up


Operating Freq.: 2.4 GHz ISM Band

Signal-To-Noise:  86 dB (Max. input : -22dBv A-weighted) , Line : 86 dB (Max. input : 0dBv A-weighted)

Dynamic Range: Mic: 90dB, Line: 87dB

Operating Range: up to 350 feet in optimal conditions

Freq. Response: Mic: 60 Hz – 20 kHz, Aux: 30 Hz – 20 kHz

Bit Rate:  384 kbps

System Latency:  4.5 ms

Battery Life Span: 500 cycles with >70% of peak performance

Battery Type: Lithium-ion polymer, 3.7 V, 1200 mAh, 4.44 Wh

Power Supply:  USB 5V



Max Output Level: 1.5 dBV

Mic Output: Φ3.5 mm dual-mono TRS

Headphone Output: Φ3.5 mm  stereo TRS

Output Impedance: Mic: 2 kΩ; Headphone: 10 Ω

Battery Life: 20 hrs

Charge Time: 2.5 hours

Dimensions: 48x79x14 mm (W/H/D)

Weight: 76 g



RF Output Power: 20/50/100 mW

Mic Input: Φ3.5 mm dual-mono TRS

Aux Input: Φ3.5 mm stereo, line level

Input Impedance: Mic: 9.1 kΩ / Aux: 100 kΩ

Max Input: Mic: -22 dBV / Aux: -2 dBV

Battery Life: ≅14 hrs @ 20 mW / ≅12 hrs @ 50 mW / ≅10 hrs @ 100 mW

Charge Time: 2.5 hours

Dimensions: 48x79x14 mm (W/H/D)

Weight: 65 g



Mic Element: Electret Condenser

Polar Pattern: Omni-Directional

Freq. Response: 20 Hz~20 kHz

Sensitivity: -38 dB @1 kHz, 0 dB=1 V/Pa

Impedance: 2.2 kΩ @1 kHz

Power Requirement: Plug-in power DC 1-10 V

Connector Type: Φ3.5 mm TRS

Cord Length: 1.2 m
