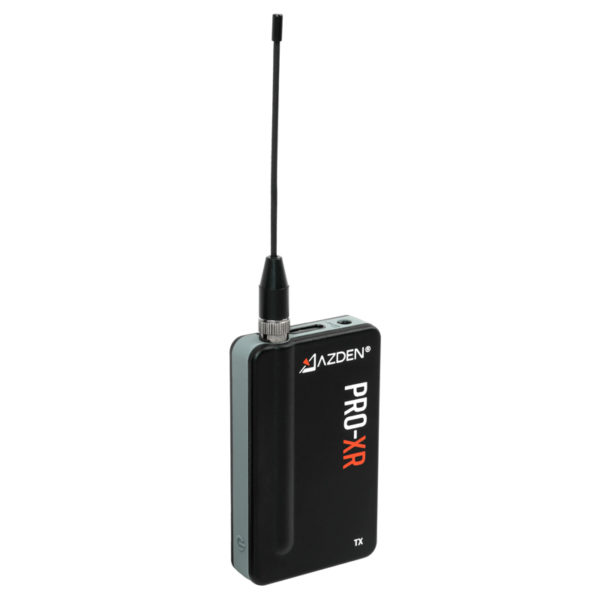

PRO-XRT Transmitter (TX) Unit Only For PRO-XR System

$124.00

Transmitter unit only for the PRO-XR wireless system. For replacement of broken or lost unit. Cannot be added to a system for multiple transmitters.

Description

First off, if you think you can buy a second transmitter for your PRO-XR system and record two people at the same time, stop right there! The PRO-XR system cannot do that. Sorry to be the bearer of bad news, but the PRO-XR is a point-to-point wireless microphone system that can only accept a signal from one transmitter at a time.

So, why would you want to buy just the transmitter for the PRO-XR? Most likely because you either lost or damaged the one you had and, without a transmitter, your PRO-XR receiver is just a rather ineffective paperweight.

If that situation describes you then rejoice, because you’ve found your solution. You can buy the PRO-XRT transmitter unit and get back to shooting video with great sounding wireless audio.

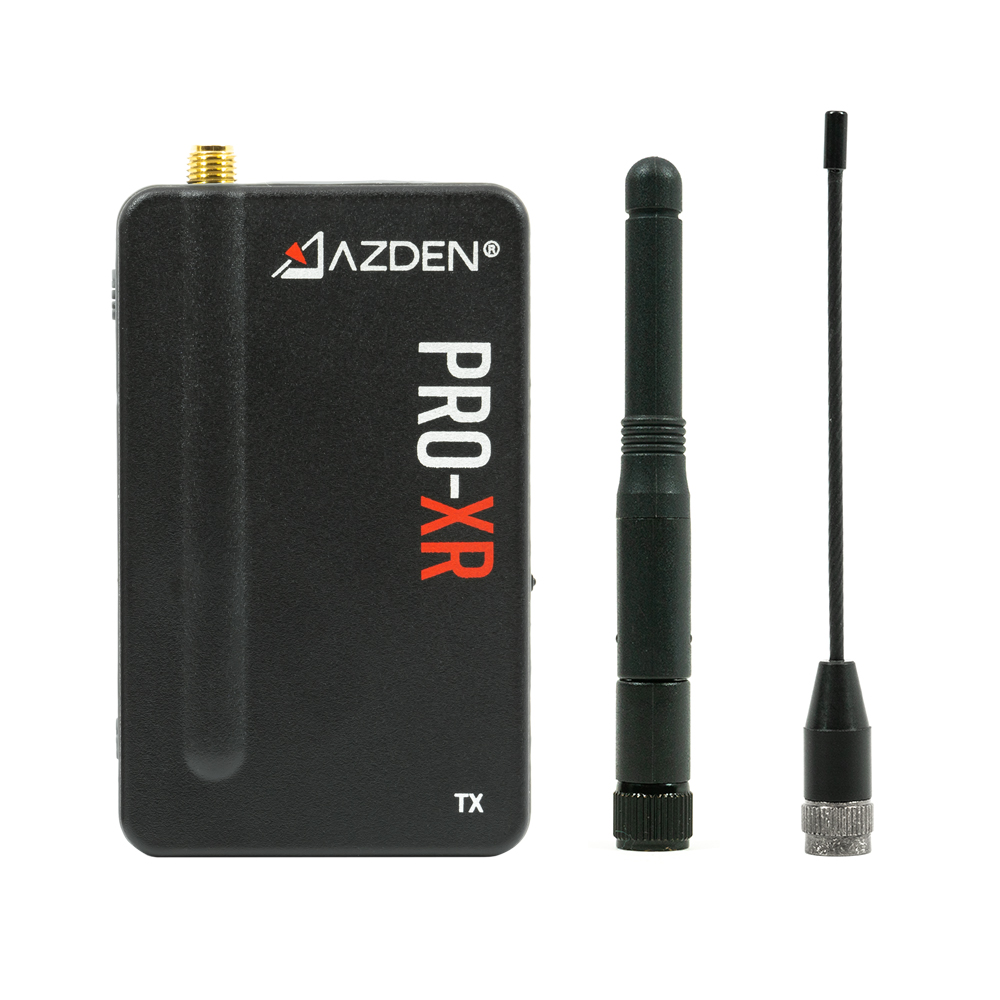

The PRO-XRT comes with two antennas: one flexible antenna for comfortable and inconspicuous wearing of the transmitter, and one high-gain antenna for increased performance, especially at long distances and with line-of-sight obstruction.

By default the PRO-XRT transmitter does not come with a lavalier microphone. If you need to replace the lavalier microphone too, you may want to add the EX-507XR lavalier microphone on to your order (exact replacement).

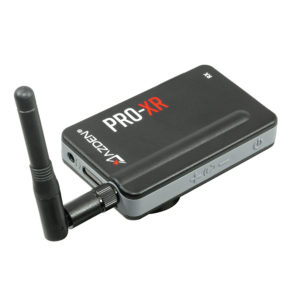

The PRO-XRT transmitter is only compatible with the PRO-XRR receiver.

Share your thoughts!

Let us know what you think...

What others are saying

There are no contributions yet.

×

Login

Register

A link to set a new password will be sent to your email address.

Your personal data will be used to support your experience throughout this website, to manage access to your account, and for other purposes described in our privacy policy.

Continue as a Guest

Don't have an account? Sign Up

SYSTEM

Operating Freq.: 2.4 GHz ISM Band
Signal-To-Noise: 86 dB (Max. input : -22dBv A-weighted) , Line : 86 dB (Max. input : 0dBv A-weighted)
Dynamic Range: Mic: 90dB, Line: 87dB
Operating Range: up to 350 feet in optimal conditions
Freq. Response: Mic: 60 Hz – 20 kHz, Aux: 30 Hz – 20 kHz
Bit Rate: 384 kbps
System Latency: 4.5 ms
Battery Life Span: 500 cycles with >70% of peak performance
Battery Type: Lithium-ion polymer, 3.7 V, 1200 mAh, 4.44 Wh
Power Supply: USB 5V

TRANSMITTER

RF Output Power: 20/50/100 mW
Mic Input: Φ3.5 mm dual-mono TRS
Aux Input: Φ3.5 mm stereo, line level
Input Impedance: Mic: 9.1 kΩ / Aux: 100 kΩ
Max Input: Mic: -22 dBV / Aux: -2 dBV
Battery Life: ≅14 hrs @ 20 mW / ≅12 hrs @ 50 mW / ≅10 hrs @ 100 mW
Charge Time: 2.5 hours
Dimensions: 48x79x14 mm (W/H/D)
Weight: 65 g

EX-507XR MICROPHONE

Mic Element: Electret Condenser
Polar Pattern: Omni-Directional
Freq. Response: 20 Hz~20 kHz
Sensitivity: -38 dB @1 kHz, 0 dB=1 V/Pa
Impedance: 2.2 kΩ @1 kHz
Power Requirement: Plug-in power DC 1-10 V
Connector Type: Φ3.5 mm TRS
Cord Length: 1.2 m
