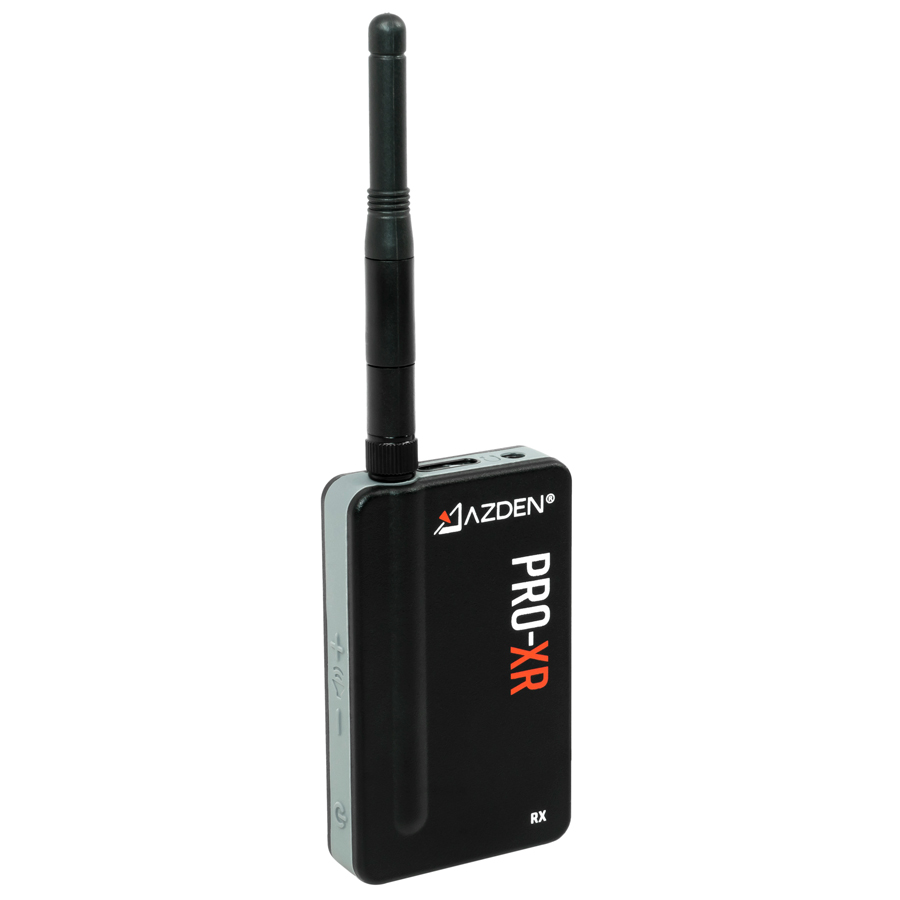

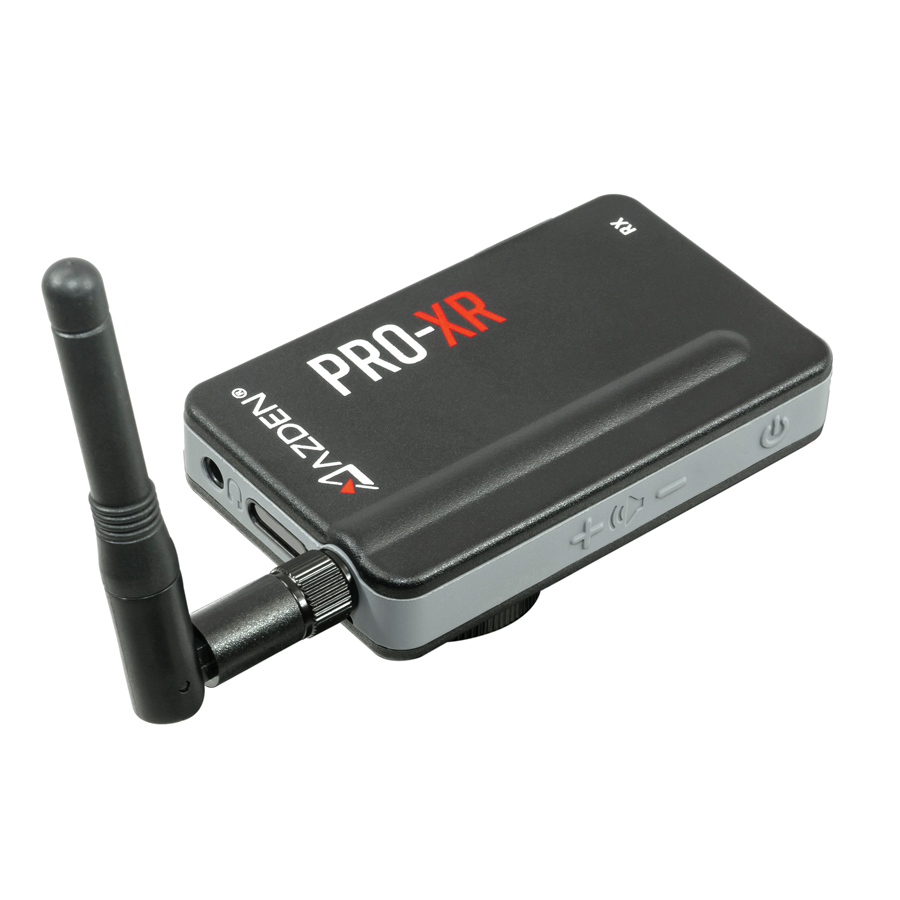

PRO-XRR Receiver (RX) Unit For PRO-XR System


RX receiver unit for the PRO-XR 2.4 GHz Wireless Microphone System.


This is the receiver (RX) component only for the PRO-XR 2.4 GHz Wireless Microphone System. Multiple receivers can be paired with the PRO-XR transmitter (TX). Adding an additional receiver to your PRO-XR system will give you the ability to receive audio into an additional camera or digital recording device from a single transmitter. Of course, this can also serve as a replacement if you happen to lose or damage your original PRO-XR receiver.

The receiver has a cold-shoe attached for camera-top mounting, includes volume control, 3.5 mm microphone output, headphone output, mini-USB port for charging, and LED indicator lights for battery and signal status.

The receiver comes with a high-gain antenna and stereo output cable.

Note: you will have to pair your new receiver with your existing transmitter. Follow the pairing instructions in the manual. This will only have to be done once, then the RX and TX units will automatically pair each time.

Share your thoughts!

Let us know what you think...

What others are saying

There are no contributions yet.




A link to set a new password will be sent to your email address.

Your personal data will be used to support your experience throughout this website, to manage access to your account, and for other purposes described in our privacy policy.

Continue as a Guest

Don't have an account? Sign Up

  • Operating Freq.: 2.4 GHz ISM Band
  • Freq. Response: Mic: 60 Hz – 20 kHz, Aux: 30 Hz – 20 kHz
  • System Latency: 4.5 ms
  • Battery Life Span: 500 cycles with >70% of peak performance
  • Battery Type: Lithium-ion polymer, 3.7 V, 1200 mAh, 4.44 Wh
  • Power Supply: USB 5V
  • Max Output Level: 1.5 dBV
  • Mic Output: Φ3.5 mm dual-mono TRS
  • Headphone Output: Φ3.5 mm stereo TRS
  • Output Impedance: Mic: 2 kΩ; Headphone: 10 Ω
  • Battery Life: 20 hrs
  • Charge Time: 2.5 hours
  • Dimensions: 48x79x14 mm (W/H/D)
  • Weight: 76 g
